The John Guest White Polypropylene 15mm Push-Fit Fitting is designed for quick and secure connections in plumbing systems. Manufactured from white polypropylene with EPDM O-rings, this fitting offers enhanced chemical resistance compared to acetal fittings. It is suitable for applications involving potable liquids and pure water.
- Material: White polypropylene with EPDM O-rings
- Chemical Resistance: Superior to acetal fittings
- Applications: Potable liquids and pure water
- Installation: Push-fit technology for quick and easy connections without the need for tools, hot works, or sealing agents
- Disconnection: Simple push-in collet mechanism for easy removal
Technical Specifications
- Pipe Compatibility: Suitable for 15mm outside diameter (OD) pipes
- Temperature Range: Minimum: 1°C (34°F), Maximum: 60°C (140°F)
- Maximum Working Pressure: At 1°C: 1000 kPa, At 20°C: 1000 kPa, At 60°C: 400 kPa
- Material Compliance: Manufactured from FDA-approved materials suitable for food contact
Materials
- Body: White polypropylene
- Seals: EPDM O-rings
Dimensions
- Pipe Insert Depth: 30mm from the end of the fitting
Compatibility Information
- Pipe Types: Compatible with plastic (polyethylene, nylon, and polyurethane) and soft metal (brass, copper, or mild steel) pipes
- Tube Tolerances: For 15mm OD pipes: +0.05 to -0.10 mm
Additional Details
- Installation Instructions: 1. Prepare the Pipe: Ensure the pipe is clean, free of score marks, and cut square. Remove all burrs and sharp edges. 2. Insert the Pipe: Push the pipe fully into the fitting until it reaches the pipe stop. 3. Secure the Connection: Pull on the pipe to ensure a secure fit.
- Disconnection: To disconnect, ensure the system is depressurized, push the collet square against the fitting, and pull the pipe to remove.

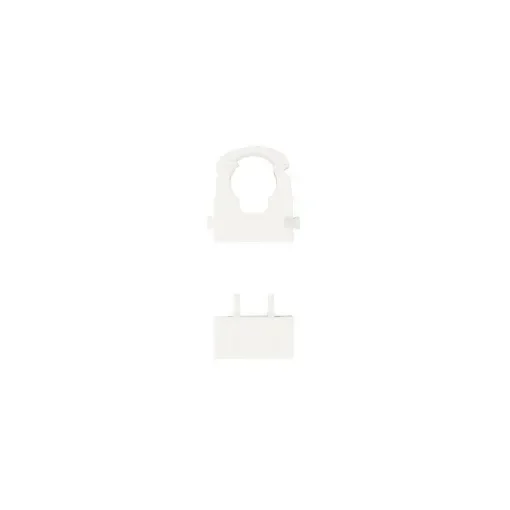

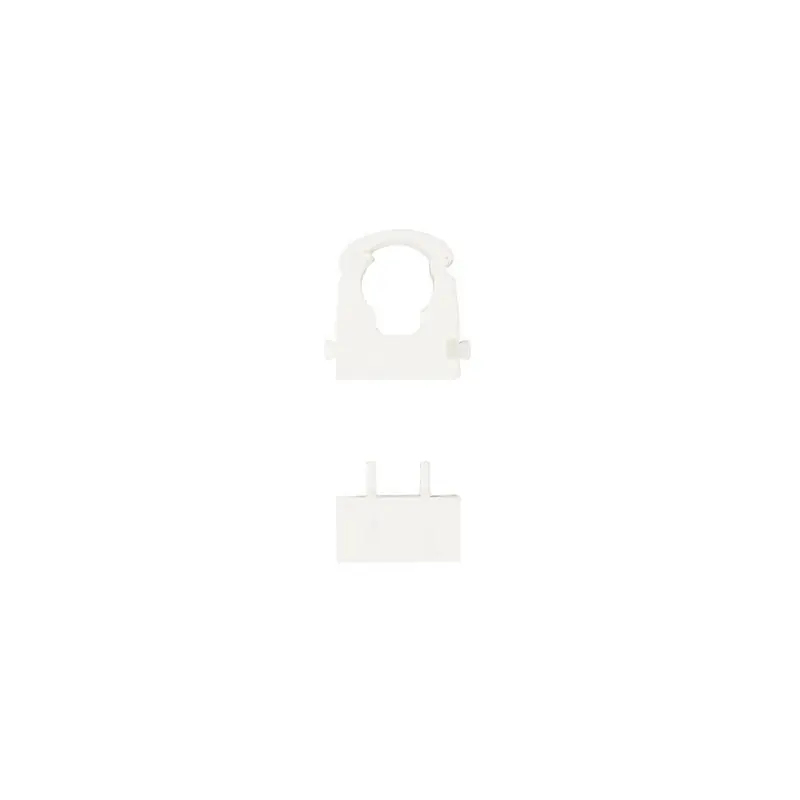

- Collet Covers & Clips: Available in various colors (white, red, blue) to provide added security against accidental disconnection and for color coding purposes.
