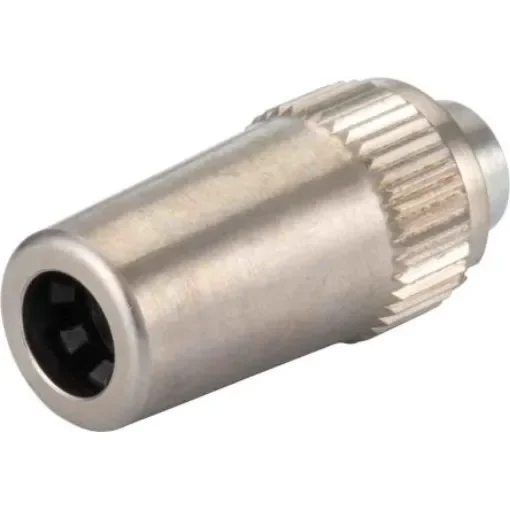

Jaeger With Push-Pull B00 Series Metallic Cable Gland, PG13.5 Thread, 3.6mm min., 6.8mm max. - 7698 070 06

Thread Size = PG13.5
Maximum Cable Diameter = 6.8mm
Minimum Cable Diameter = 3.6mm
Colour = Metallic
Series = With Push-Pull B00
Standards Met = RoHS Compliant

All contacts must be installed in the insulation. Contact dimensions according to NFC 93422. "Miniature HD" plugs and connectors series. Features and benefits. "Miniature high density" series plugs with push-pull locking. Available in housing size 00 with 7 contacts, or size 0 with 19 contacts. Uses removable crimp contacts. Nominal contact diameter: 0.76 mm (rating 22D). Available in male or female versions. The rear cable gland connectors are available in two versions: with a simple cable gland or with a cable gland with a 360° earth connection; these must be ordered separately.
