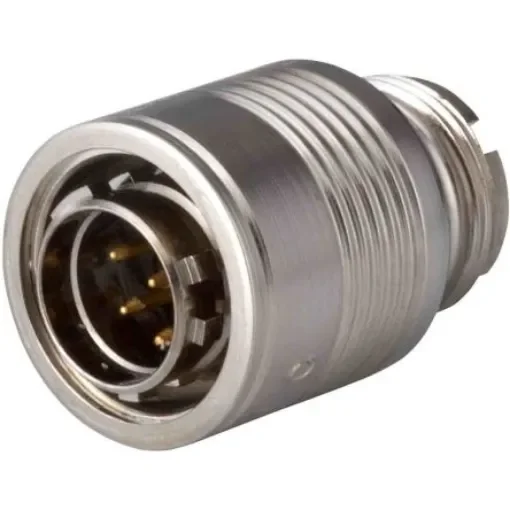

Jaeger Circular Connector, 19 Contacts, Cable Mount, Miniature Connector, Plug, Female, IP65, 7622 Series - 7622 190 06

All contacts must be installed in the insulation. Contact dimensions according to NFC 93422. "Miniature HD" plugs and connectors series. Features and benefits. "Miniature high density" series plugs with push-pull locking. Available in housing size 00 with 7 contacts, or size 0 with 19 contacts. Uses removable crimp contacts. Nominal contact diameter: 0.76 mm (rating 22D). Available in male or female versions. The rear cable gland connectors are available in two versions: with a simple cable gland or with a cable gland with a 360° earth connection; these must be ordered separately.
