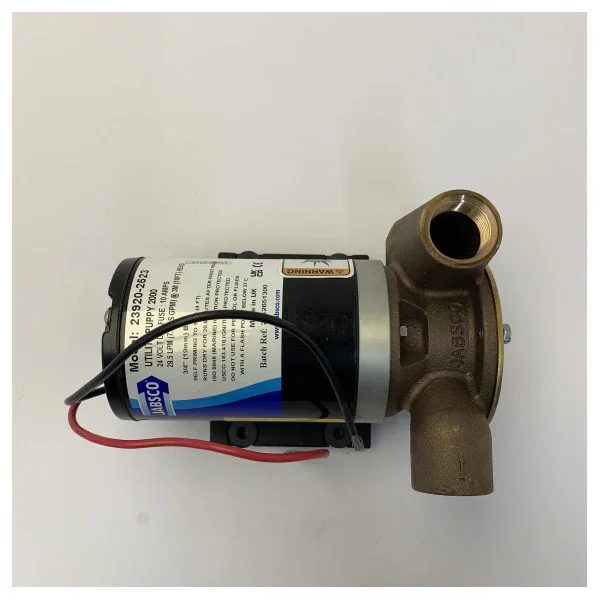

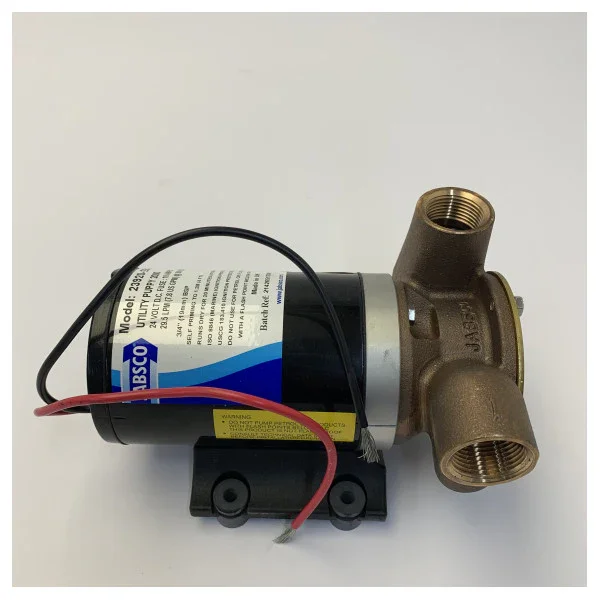

Jabsco Utility Puppy 2000 Electric Impeller Pump 24V
The Jabsco Utility Puppy 2000 (model 23920-2523) is a robust and versatile electric impeller pump specifically designed for continuous use in demanding environments. Whether it is for pumping water from the bilge, cleaning decks, or moving liquids in industrial applications, this pump delivers reliable performance under heavy conditions.
Thanks to its self-priming capability, the pump can pick up liquids directly, even when the pipes are still dry. The pump is built with a high-quality bronze housing, ensuring excellent corrosion resistance and a long lifespan.
Key Features and Benefits
- Self-priming capability: The Utility Puppy 2000 can draw liquids up to a vertical height of 1.2 meters, allowing installation above the liquid level.
- Continuous use: Unlike many other pumps, this model is suitable for prolonged use without breaks.
- Robust construction: The pump features a mechanical shaft seal and a bronze pump housing for maximum durability.
- Easy maintenance: The impeller is easily accessible for inspection or replacement, minimising downtime.
Technical Specifications and Performance

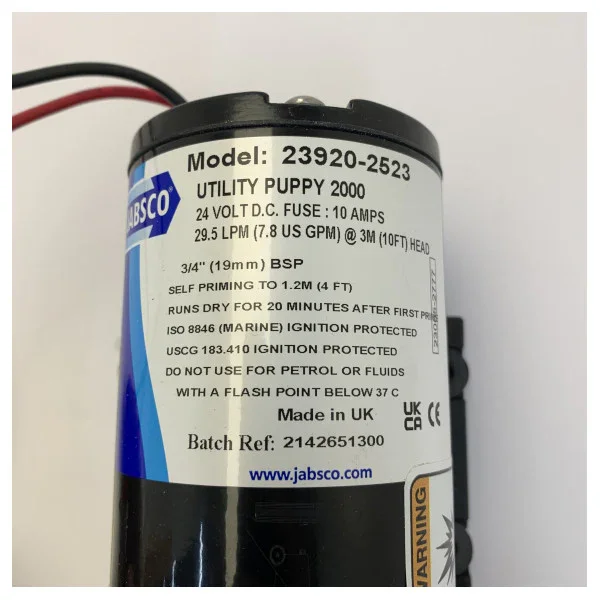

The Jabsco 23920-2523 operates at a voltage of 24 Volt direct current (DC). The pump delivers an impressive maximum output of 32 litres per minute (approximately 500 gallons per hour). At a lift height of 3 meters, the flow rate is still around 28.5 litres per minute.
The connections of this pump are equipped with 3/4 inch BSP female thread, ensuring a secure and leak-free connection with standard piping. For the protection of the electrical system, a fuse of 10 Amperes is recommended. The maximum current consumption of the motor is around 6 Amperes under normal load.
The dimensions of the pump are compact with a length of 190 mm, a width of 120 mm, and a height of 95 mm, allowing it to fit in tight engine rooms or storage compartments. The total weight of the unit is approximately 3.9 kilograms.
