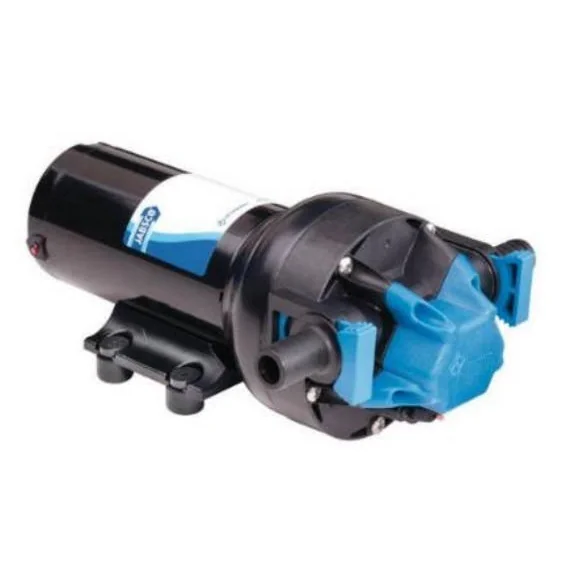

The Jabsco Par-Max Water Pressure Pump is engineered to deliver efficient and consistent freshwater supply for marine applications. This pump features a robust aluminum casing, enhancing rigidity and extending its operational lifespan.
- Self-Priming Capability: Achieves a priming height of 2.4 meters, with a maximum suction lift of 8.5 meters, facilitating versatile installation options.
- Dry Operation Tolerance: Designed to operate dry for extended periods without sustaining damage, even when the liquid supply is exhausted.
- Seal-Less Design: Utilizes a membrane with alternating motion, eliminating the need for rotating shaft seals and minimizing maintenance requirements.
- Corrosion Resistance: Constructed with materials compatible with various corrosive and hazardous liquids, expanding its range of applications.
- Automatic Control and Bypass Valve: Equipped with an optional automatic control and a bypass valve to enhance application compatibility.
Technical Specifications:
- Flow Rate: Up to 6 GPM (23 LPM)
- Maximum Pressure: 60 PSI (4.1 BAR)
- Motor Design: Brushed, permanent magnet TENV
- Upper Housing Material: Glass fiber reinforced polypropylene
- Diaphragm Material: Co-molded TPV
- Check Valves Material: EPDM
- Fluid Temperature Range: 32°F – 140°F (0°C – 60°C)
- Ingress Protection: IPX6
- Certifications: CE, ISO8846, RCM
Materials:
- Casing: Aluminum
- Diaphragm: Co-molded TPV
- Check Valves: EPDM
Compatibility Information:
The Par-Max series is suitable for various marine applications, including freshwater systems, washdown, and pressure pumps. Its design allows for compatibility with many corrosive, hazardous, and non-lubricating liquids.
