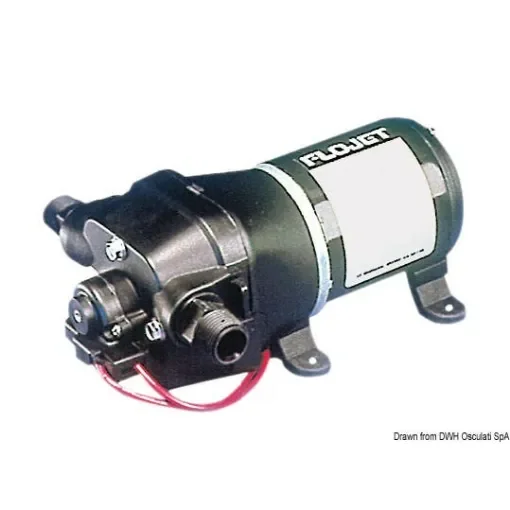

The Flojet Self-Priming Diaphragm Pump by Jabsco is engineered to provide a reliable and consistent water supply on board. Its self-priming capability ensures efficient operation, even when the pump is dry. The duplex diaphragm design allows for extended dry running without damage. The pump is equipped with a pressure switch that activates at 2.1 bar (40 psi) and deactivates at 4.2 bar (60 psi), ensuring optimal performance. The pump is designed for intermittent duty and can self-prime up to a vertical lift of 2.4 meters. The diaphragm and valves are made of EPDM material, providing durability and resistance to various chemicals. The pump features 9.5 mm (3/8") NPT connections, facilitating easy installation. Its compact dimensions of 204 mm in length, 101 mm in width, and 92 mm in height make it suitable for installations in tight spaces. The pump operates on a 12-volt DC power supply and has a fuse size of 10 amps. The maximum recommended total head is 30 meters, and the pump can deliver up to 5.3 liters per minute (1.2 gallons per minute). The package includes the self-priming diaphragm pump, an instruction manual, and a mounting kit.
