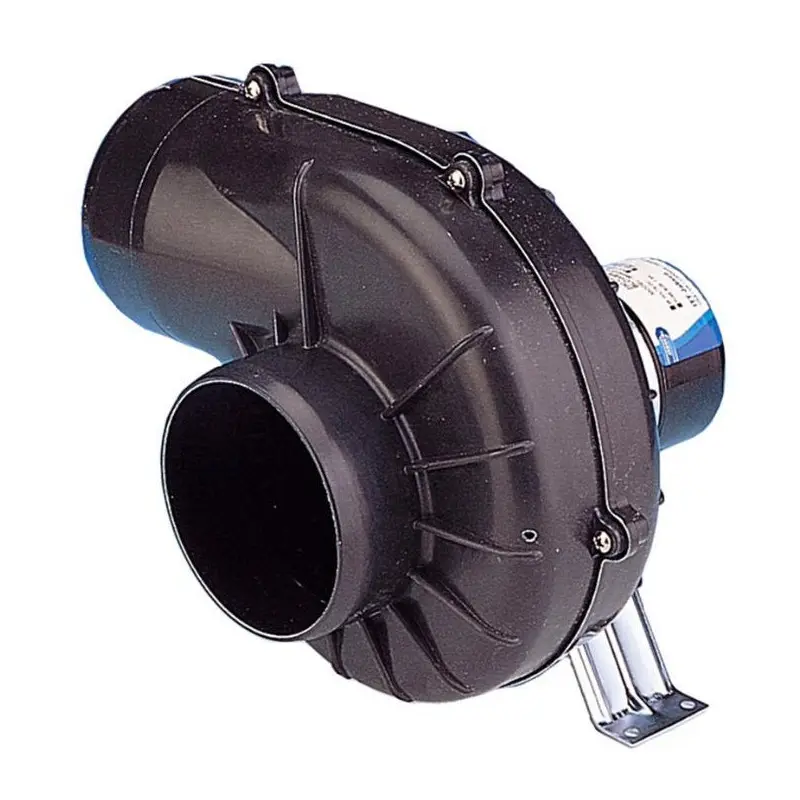

This Jabsco 24V gas extractor with bracket is specially designed to ventilate critical areas of the vessel, such as bilges and engine compartments, improving onboard safety and comfort. The 250CFM flow ensures rapid evacuation of gases and fumes, protecting both equipment and crew.
Technical Features
- Power supply: 24V DC
- Flow rate: 250CFM (7.08 m³/min)
- Connection diameter: 100mm
- Mounting: robust fixing bracket
- Housing made of polymer resistant to marine weathering
- Jabsco reference: 35440-0010
Advantages
- Power: high flow rate for reliable ventilation in enclosed spaces.
- Easy installation: the bracket allows direct fixing in compartments and bulkheads.
- Durability: resistant to corrosion and marine environment effects.
Typical Applications
- Bilges
- Engine compartments
- Spaces at risk of fume/gas accumulation
Maintenance and Tips
- Check turbine condition periodically
- Ensure air intakes are clean and unobstructed
- Verify electrical connections before the navigation season
| Power supply | 24V |
|---|
| Flow rate | 250CFM |
|---|
| Diameter | 100mm |
|---|
| Brand | Jabsco |
|---|
| Reference | 35440-0010 |
|---|
