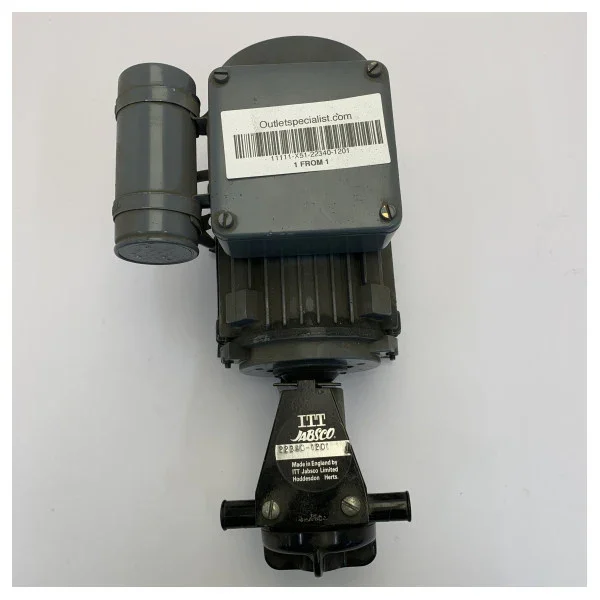

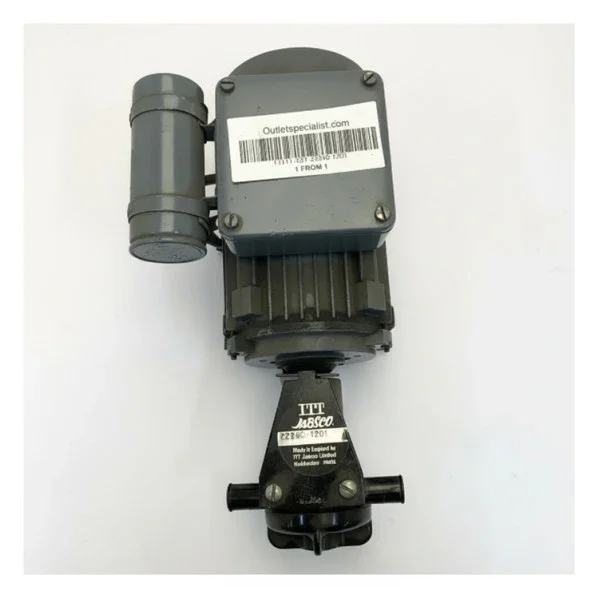

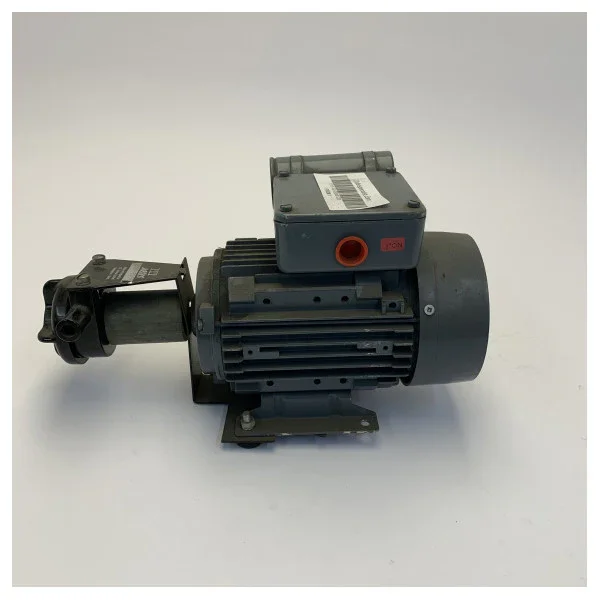

Jabsco 22340-1201 Electric Diaphragm Pump - 230V Liquid Pump
The Jabsco 22340-1201 is a powerful and reliable electric diaphragm pump, specially designed for pumping thin liquids based on oil. Thanks to its robust construction and 230 Volt drive, this pump is extremely suitable for industrial use, professional workshops, and maritime applications where a constant liquid flow is required.
Reliable performance and durability
This self-priming liquid pump uses the proven diaphragm pump technology from Jabsco. This ensures efficient displacement of liquids such as diesel, light heating oil, and other non-corrosive liquids with low viscosity. The compact design makes installation in limited spaces easy, while the high-quality materials ensure a long lifespan, even with intensive use.
Safety and installation
The pump is equipped with a built-in bypass valve that protects the pump from overload when the discharge side is closed. This increases safety during use. With the standard 230V connection, the pump can be directly connected to the mains, making it a versatile solution for stationary setups.
Key features and benefits
- Self-priming capability: The pump can draw liquids without the pipes needing to be fully filled beforehand.
- Integrated bypass: Prevents damage to the motor during temporary blockages or closed valves.
- Continuous operation: Designed for prolonged use without the risk of overheating under normal use.
- Robust housing: Resistant to harsh conditions in technical spaces or engine rooms.
- Easy maintenance: The diaphragms are easily accessible and replaceable if necessary.
Technical specifications
- Brand: Jabsco

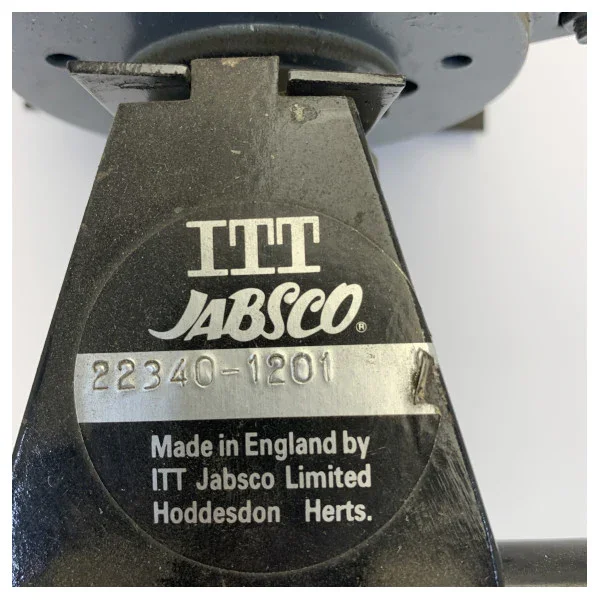

- Model number: 22340-1201
- Type of pump: Electric diaphragm pump (Vane Pump)
- Voltage: 230 Volt AC (Alternating Current)
- Maximum capacity: Approximately 35 litres per minute
- Connection: 1/2 inch BSP internal thread
- Material of pump housing: Brass
- Material of diaphragms: Carbon or plastic (depending on series)
- Maximum lift height: Up to 6 metres
- Application: Diesel, light oil, and aqueous liquids (not for petrol)
- Protection class: IP44 or higher (suitable for damp environments)
