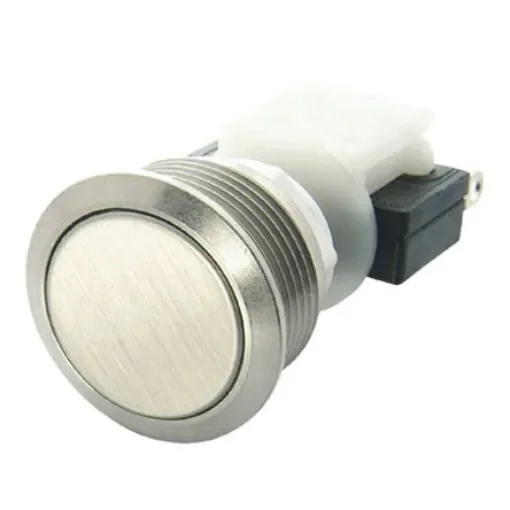

ITW Switches H48M Series Push Button Switch, Latching, Panel Mount, 19.56mm Cutout, SPDT, 250V ac, IP67 - H48M-210N4044

ITW H48M Series Stainless Steel Indicator. The ITW H48M Series of rugged stainless steel electromechanical pushbuttons are offered in both momentary ; latching operation. The H48M series also offers spot ; ring illumination options, to accompany the standard plain actuator. The series provides a reliable and robust switch solution to a wide range of applications, such as security, food processing ; medical installations. The H48M series have been designed to easily mount into panels of a thickness range of 0.5 mm to 4.5 mm. Frontal sealing offers IP67 rating and is achieved by an o-ring fitted around the body. Features and Benefits Electro-mechanical operation. Premium stainless steel constructed housing. Momentary or latching operation. Panel sealing up to IP67 rating. Plain, centre spot ; ring illumination options. LED options available. Typical Applications include: External control equipment. Industrial machinery. Security equipment. Medical equipment. Food processing. Mass transit and lift trucks.
