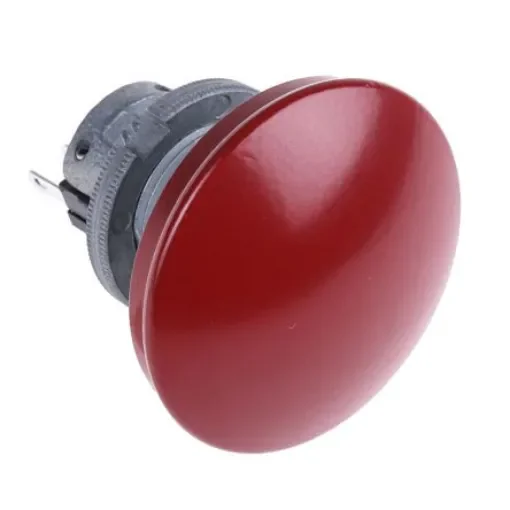

ITW Switches 76-94 Series Push Button Switch, Momentary, Panel Mount, 22mm Cutout, SPDT, Clear LED, 250V ac, IP67 - 76-9440/439088R

These switches are not positive break types and should not be used for emergency stop applications.Accessories listed are not ITW products. Suitable wedge base lamps include ; 106-357 106-357 , ; 655-9637 655-9637 , ; 655-9665 655-9665. High Impact IP67 Pushbutton Switches. The 76-94 Series from ITW, have been designed to cover a wide range of harsh environmental applications. Such as:-. • Military Environments • Robust Industrial • Vandal resistant requirements • Mining Industries • Petrochemical • Process control • Material Handling. Features and Benefits. • The range is available in 3 styles, push-button, rotary and panel lamp. • Push-button comes in 4 button styles with 3 colour options and has solder/faston terminals as standard. • The rotary is a single pole, 2 position, snap action switch with green or red spot indicator on the black actuator. • The indicator version is available with a red, green or amber lens. • Panel sealed to IP67 and due to the construction and the materials used, are all capable of surviving the impact of approximately a 5 kg mass dropped from 40 cm (20J). (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes). • The bezels and the actuators have been designed from non- sparking zinc alloy. • Explosive-proof material used.
