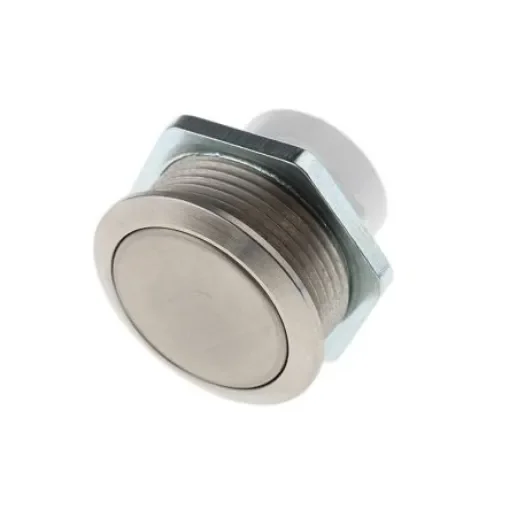

ITW Switches 48M Series Push Button Switch, Momentary, Panel Mount, 19.43mm Cutout, SPST, Clear LED, 48V dc, IP67 - 48M 510N

Switch Operation = Momentary
Illuminated = No
Panel Cut Out Diameter = 19.43mm
Mounting Type = Panel Mount
Push Button Colour = Chrome
Contact Configuration = SPST
Voltage Rating = 48V dc
Push Button Style = Round
LED Colour = Clear
IP Rating = IP67
Contact Current Rating = 250 mA @ 12 V dc
Contact Material = Gold Plated
Manufacturer Part No. = 48M 510NV

For RS Stock numbers ; 702-7096 702-7096 , ; 702-7099 702-7099 ; ; 702-7093 702-7093 a lighting resistor is required. 48M Series Panel-sealed Metal. Stainless steel housed panel-sealed pushbutton switches with centre-spot and ring-style LED illumination options. Ideal for industrial machinery, outdoor controls and kiosks, security products, food processing equipment and medical products. Rugged construction with IP67 panel sealing Gold-plated contacts and terminations SPNO contacts rated 250mA @ 12Vdc, 100mA 48Vdc Single hex nut panel fixing, 19.3mm panel cut-out Suitable for panel thickness of 1.3 to 3.8mm
