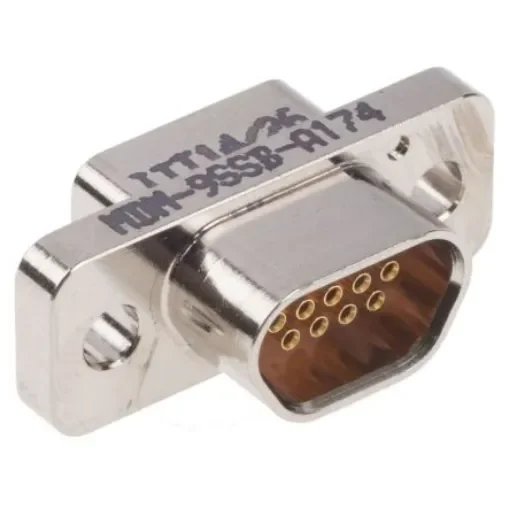

ITT Cannon MDM 9 Way Panel Mount D-sub Connector Socket, 1.27mm Pitch - MDM-9SSB-A174

Number of Contacts = 9
Gender = Female
Body Orientation = Straight
Mounting Type = Panel Mount
Pitch = 1.27mm
D Connector Type = Micro-D
Termination Method = Solder
Current Rating = 3A
Housing Material = Aluminium Alloy
Length = 19.94mm
Width = 7.82mm
Depth = 10.09mm
Dimensions = 19.94 x 7.82 x 10.09mm
Contact Size = 24°C

For suitable jackscrews see stock number ; 770-7941 770-7941 , ; 770-7944 770-7944 and ; 770-7953 770-7953 typically. ITT 1.27mm Micro-D Connectors - MDM Series. MDM series moisture sealed Micro-D connectors with a lightweight, rugged design and high density contact configurations on a 1.27mm pitch. These MDM microminiature D connectors have electroless nickel plated aluminium shells for added strength and EMI and RFI shielding along with silicone elastomer compression interfacial seals that provide protection against moisture and humidity between each contact and contacts and shell. The contacts of these MDM Micro-D connectors are size 24 MICROPIN™ or MICROSOCKET™ contacts which are made from copper alloy with a gold plating. These Micro-D connectors have 2.31mm mounting holes and are available with various termination options: Part numbers: MDM-xxxSB-xxx have solder pot terminations that accept 26AWG max harness wire. Part numbers: MDM-xxxH003B-xxx have harness wire terminations (18", 7 strand 26AWG to MIL-W-16878/4, Type E Teflon, colour coded to MIL-STD-681 system I). Part numbers: MDM-xxxL1B-xxx have 0.5" uninsulated solid 25AWG gold plated copper wire terminations.
