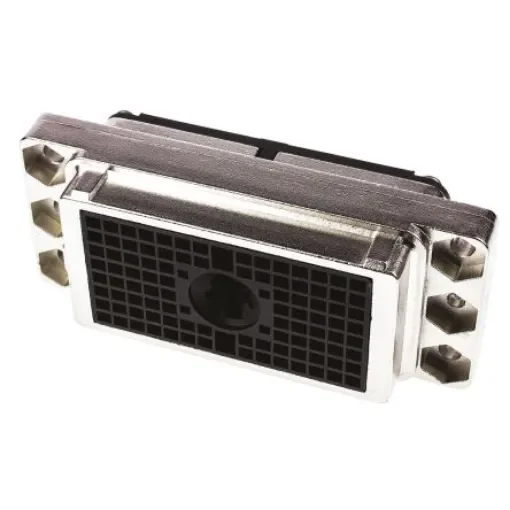

ITT Cannon, DLM Socket Body, Female, Straight, 96 Way - 127050-0216

Gender = Female
Body Orientation = Straight
Housing Material = Aluminium Alloy
Contact Material = Beryllium Copper
Contact Plating = Gold
Current Rating = 5A

ITT Cannon ConnectorThe ITT Cannon DLM series metal connector shell has a shield locking mechanism feature which ensures uniform mating pressure around the perimeter of the mated connector to create an EMI/RFI shield. This female connector shell has 96 number of contacts. This contact is made of beryllium copper with gold plating.Features and BenefitsIt has electrical rating of 5A and 1.2kVAC. Termination type is crimp Operating temperature range is between -55°C and 105°C Cam actuated zero insertion force coupling Backshell/strain relief and polarisation options Mounting type is panel mountApplicationsUsed for instrumentation equipment in medical Computer Used in broadcast and avionics industriesCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
