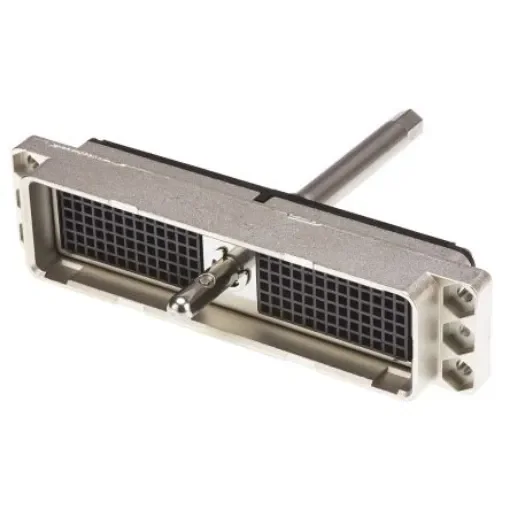

ITT Cannon, DLM Plug Body, Male, Straight, 156 Way - 127050-0204

Number of Contacts = 156
Voltage Rating = 1.2 kV ac
Series = DLM
Minimum Operating Temperature = -55°C

ITT Cannon ZIP Connector PlugThe ITT Cannon DLM series 156-way ZIP connector plug uses a rugged nickel-plated aluminium housing. It has 156 contacts and a shield locking mechanism feature, which ensures uniform mating pressure around the perimeter of the mated connector to create an EMI/RFI shield. This contact is made of beryllium copper with gold plating.Features and BenefitsBack shell/strain relief and polarisation options Current rating is 5A Voltage rating is 1.2kVAC Cam actuated zero insertion force coupling Mounting type is panel mount Operating temperature ranges between -55°C and 105°C Termination type is crimpApplicationsBroadcast and avionics industry Computers Instrumentation equipment in medical fieldCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
