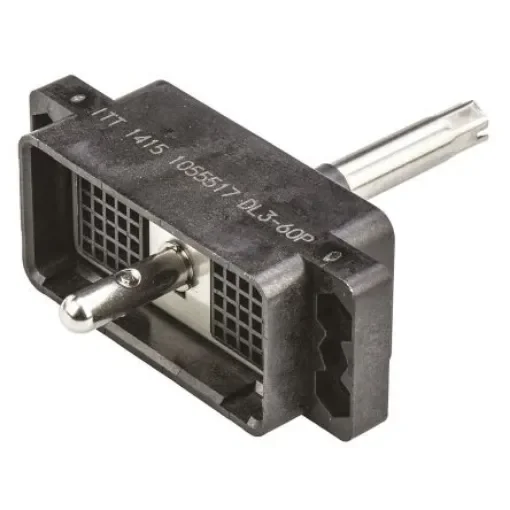

ITT Cannon, DL 2.54mm Pitch Plug Body, Male, Straight, 60 Way - DL3-60P

ITT Cannon ZIP Connector PlugThe ITT Cannon DL series high-density 60-way ZIP connector plug has zero insertion force. This male connector has 60 contacts and it is made of beryllium copper with gold plating. The DL series connectors will mate and lock together using the appropriate actuating handle fitted to the camshaft in the plug body. This makes them ideal for quick and durable mating in multi-wire power and signal applications where high performance is extremely important. This connector has backshell/strain relief and polarising option, which ensures correct orientation. The housing is made of thermoplastic material.Features and BenefitsAny number of contacts can be loaded into individual cavities, up to the maximum stated Current rating is 5A Voltage rating is 1.2kVAC Long life - 10000 mating cycles Moulded alpha numeric cavity grid reference Operating temperature ranges between -55°C and 105°C Panel mounting holes accept back shells and polarising pillars Termination type is crimpApplicationsBroadcast and avionics industry Computers Instrumentation equipment in medical fieldCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
