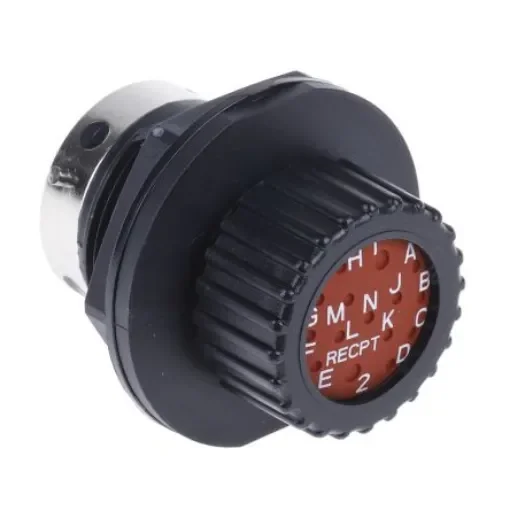

ITT Cannon Circular Connector, 15 Contacts, Panel Mount, Socket, Male, IP67, Trident Neptune Series - TN7S16-0213P1L / 192900-0583

ITT Cannon Circular ConnectorThe ITT Cannon Neptune series 15-contacts (13-signal contacts and 2-power contacts), the male circular connector has a socket-type connection. This panel mount connector has a voltage rating of 25V and a current rating of up to 16A per contact. This connector is mounted from the rear of a panel via a single D hole for in-line connections. This connector is made from nylon and metal coupling ring with stainless steel bayonet pins integrally moulded into the body. This circular plastic connector comes with a metal coupling nut and bayonet retention mechanism, providing the cost and weight benefits of a plastic connector with the durability of a metal connector. Neptune: Based on the Trident Ringlok series, the Neptune range combines power and signal contacts. Widely used in automotive, marine and process control industries, it features a strong bayonet coupling system with standard and reversed pin/socket combinations. A wide selection of backshell accessories, rear housings and dust caps are available. To maintain IP67 rating, the rear of the connectors have a rubber seal, which is pierced upon contact insertion. The seal is held in place by a screw ring (as supplied) which can be replaced with the backshell of appropriate size. For IP67 rating to be maintained, wire insulation diameters should be within the following diameters: Signal wires: 1.7 to 2.7mm, Power wires: 2.7 to 4.0mm. The number of contacts shown as power/signal, e.g.: 2//13.Features and BenefitsJam nut receptacle pin Shell size is 16 Robust, cost-effective design Straight body orientation Crimp termination method Water submersible Durability of 500 mating cycles Mixes signal and 30A power contacts in one housing Full interface and cable sealing Operation temperature ranging between -55°C and 105°CApplicationsOff road vehicles Truck and bus Agricultural equipment Construction equipment Printing machines Industrial automation Stamping machinesCertificationsIP67 rated UL approved
