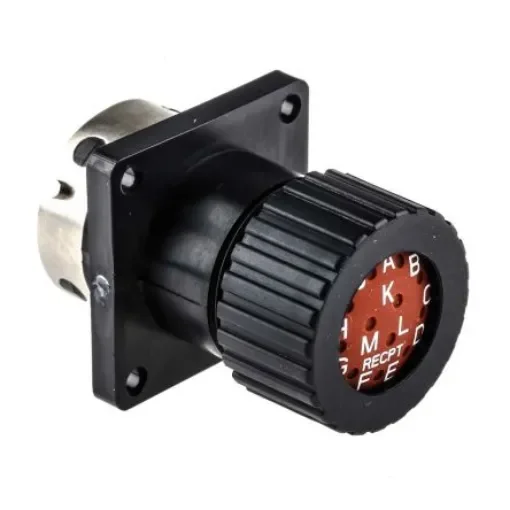

ITT Cannon Circular Connector, 12 Contacts, Panel Mount, Socket, Female, IP67, Trident Neptune Series - TN0S14-0012S1L / 192900-0308

Number of Contacts = 12
Mounting Type = Panel Mount
Connector Size = Standard
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Crimp
IP Rating = IP67
Body Orientation = Straight
Housing Material = Polymer
Contact Plating = Nickel
Minimum Operating Temperature = -55°C

ITT Cannon Circular ConnectorThe ITT Cannon Trident Neptune series 12-contacts female circular connector has socket type connection. This panel mount connector has a voltage rating of 25V and a current rating of up to 16A per contact. It is made from nylon and metal jam ring with stainless steel bayonet pins integrally moulded into the bodies. This circular plastic connector comes with a metal coupling nut and bayonet retention mechanisms providing the cost and weight benefits of a plastic connector with the durability of a metal connector. Neptune Based on the Trident Ringlok series, the Neptune range combines power and signal contacts. Widely used in automotive, marine and process control industries, they feature a strong bayonet coupling system with standard and reversed pin/socket combinations. A wide selection of backshell accessories, rear housings and dust caps are available. To maintain IP67 rating the rear of the connectors have a rubber seal which is pierced upon contact insertion. The seal is held in place by a screw ring (as supplied) which may be replaced with the appropriate size backshell. For IP67 rating to be maintained, wire insulation diameters should be within the following diameters: Signal wires: 1.7 to 2.7mm, Power wires: 2.7 to 4.0mm. The number of contacts shown as power/signal e.g. 2//13.Features and BenefitsStraight body orientation Shell size is 14 Crimp termination method Robust and cost-effective design Water submersible Durability of 500 mating cycles Mixes signal and 30A power contacts in one housing Full interface and cable sealing Operation temperature ranging between -55°C and 105°CApplicationsOff Road vehicles Truck and bus Agricultural equipment Construction equipment Printing machines Industrial automation Stamping machinesCertificationsIP67 rated UL approved
