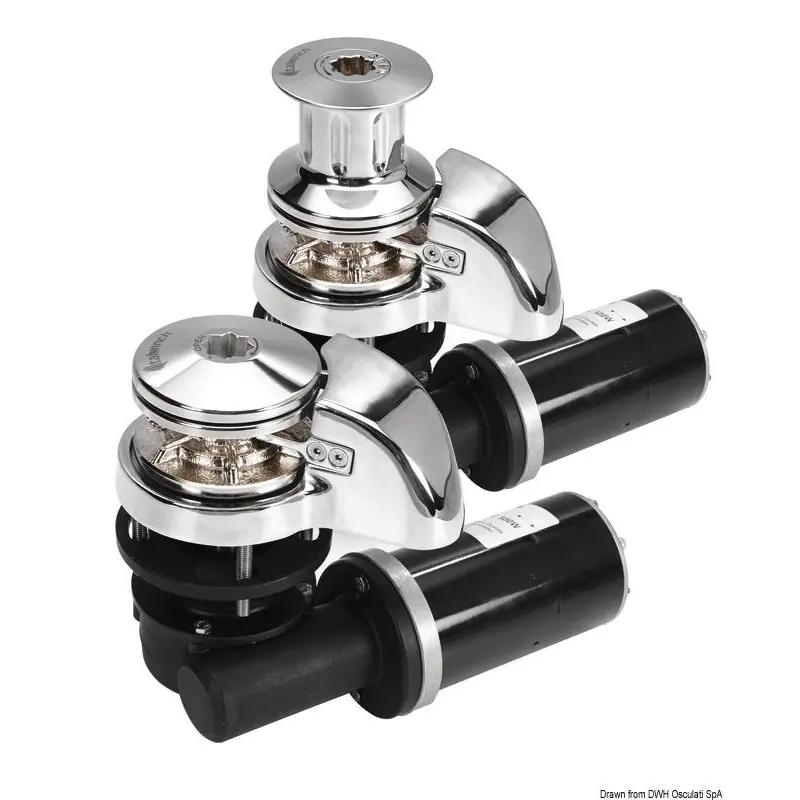

The Italwinch Smart Windlass is a vertical anchoring solution designed for small motorboats and light sailboats up to 10 meters in length. Crafted from polished AISI 316 stainless steel, it offers durability and resistance to marine corrosion. This windlass is available in two configurations: with a high-profile gypsy and drum, or with a low-profile gypsy without a drum, catering to various installation preferences.
- Motor Power: 500W
- Voltage: 12V
- Maximum Instantaneous Pull: 650 kg
- Working Load Lifting Capacity: 90 kg
- Recovery Speed Under Load: 23 meters per minute
- Integrated Chain Counter Sensor: Pre-installed for accurate chain measurement
- Waterproof Motor: IP67 rating ensures protection against immersion
- Manual Disengagement: Allows operation during electrical failures
Technical Specifications:
- Chain Compatibility: 6mm chain
- Rope Compatibility: 12 to 14 mm rope
- Materials:
- Body: Polished AISI 316 stainless steel
- Gypsy: Steel
- Drum (if included): Steel
- Dimensions:
- With Drum:
- Height: 18 cm
- Width: 44 cm
- Length: 43 cm
- Without Drum:
- Height: 19 cm
- Width: 45 cm
- Length: 45 cm
- Weight:
- With Drum: 10.02 kg
- Without Drum: 8.80 kg
