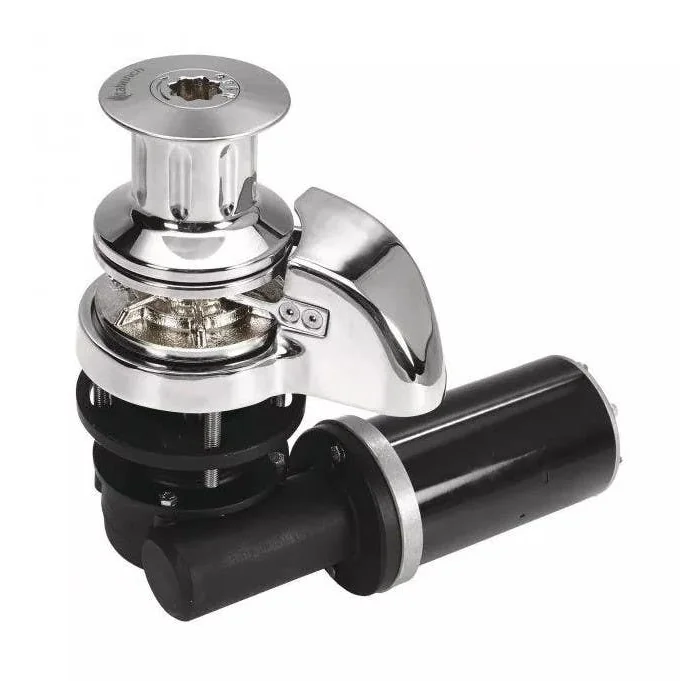

The Italwinch Smart Windlass is a high-performance vertical windlass designed for boats ranging from 8 to 13 meters in length. Crafted from polished AISI 316 stainless steel, it offers exceptional durability and resistance to marine environments. This windlass is available in both 12V and 24V configurations, catering to various boating needs.
- Power Options: Available in 500W, 700W, and 1000W motor configurations, with both 12V and 24V power supply options.
- Maximum Instantaneous Pull: Ranges from 650 kg to 940 kg, depending on the motor and voltage configuration.
- Working Load Capacity: Lifting capacity varies from 90 kg to 130 kg, ensuring efficient anchoring operations.
- Recovery Speed: Under load, the windlass operates at speeds between 23 m/min and 26 m/min, facilitating quick retrieval of the anchor.
- Integrated Chain Counter: Equipped with a built-in chain counter sensor for real-time monitoring of chain deployment and retrieval.
- Waterproof Motor: Features an IP67-rated motor, making it waterproof and dustproof, capable of withstanding accidental immersion.
- Manual Disengagement: Includes a manual disengagement lever, allowing operation even during power failures.
Technical Specifications:
- Materials: Constructed from polished AISI 316 stainless steel for enhanced durability and corrosion resistance.
- Chain Compatibility: Supports chain sizes of 6mm, 7mm, and 8mm, providing versatility for different anchoring needs.
- Dimensions: Specific dimensions are not provided in the available sources.
- Weight: The weight varies depending on the motor power and voltage configuration. For instance, the 1000W 12V model weighs approximately 13 kg without the drum and 14.5 kg with the drum.
