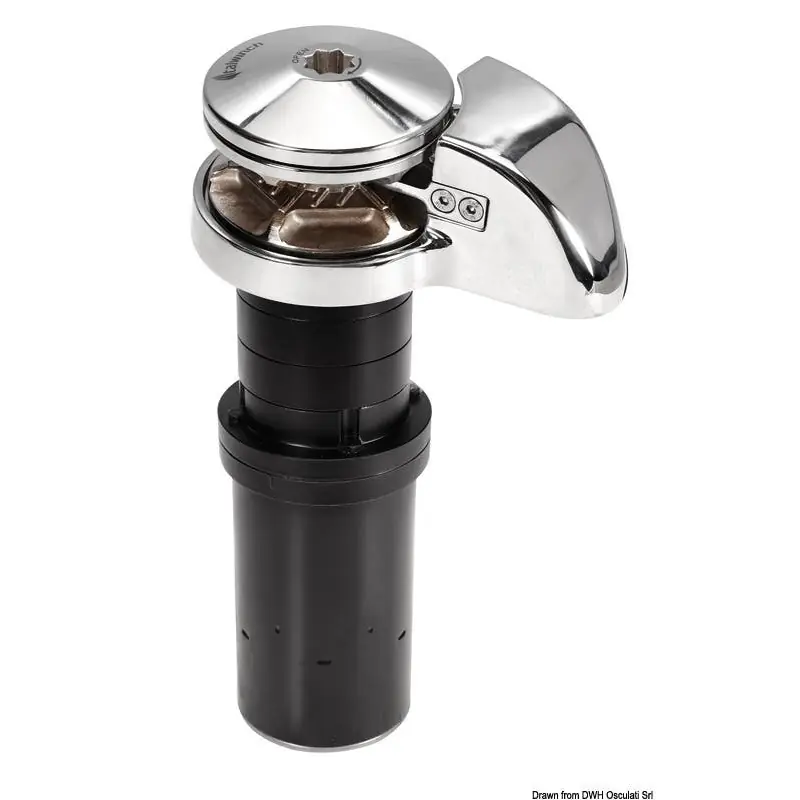

The Italwinch Smart V Windlass is a vertical motor windlass designed for boats ranging from 5 to 10 meters in length, offering a compact and efficient anchoring solution for vessels with limited space. Constructed from polished AISI 316 stainless steel, it ensures durability and resistance to marine corrosion.
- Power Options: Available in 500 W and 800 W configurations, suitable for 12 V and 24 V systems.
- Chain Compatibility: Compatible with 6 mm, 7 mm, and 8 mm chains, providing versatility for various anchoring setups.
- Integrated Chain Counter: Equipped with a built-in chain counter sensor for precise monitoring of chain deployment.
- Waterproof Motor: Features an IP67-rated motor, ensuring protection against water and dust ingress.
- Compact Design: Ideal for boats with limited deck space, facilitating easy installation directly on the deck.
Technical Specifications
| Specification | 500 W (12 V) | 500 W (24 V) | 800 W (12 V) | 800 W (24 V) |
|---|
| Maximum Pulling Force | 670 kg | 680 kg | 800 kg | 810 kg |
| Working Load (Lifting Capacity) | 90 kg | 90 kg | 100 kg | 100 kg |
| Recovery Speed (Under Load) | 23 m/min | 23 m/min | 25 m/min | 25 m/min |
| Average Current Draw | 60 A | 32 A | 90 A | 45 A |
| Weight (Without Chain) | 9 kg | 9 kg | 9.5 kg | 9.5 kg |
Materials
- Body: Polished AISI 316 stainless steel for enhanced corrosion resistance.
Dimensions
- Height: Approximately 9.5 cm
- Width: Approximately 20 cm
- Depth: Approximately 20 cm
Compatibility Information
- Boat Length: Suitable for boats up to 10 meters in length.
- Chain Sizes: Compatible with 6 mm, 7 mm, and 8 mm chains.
