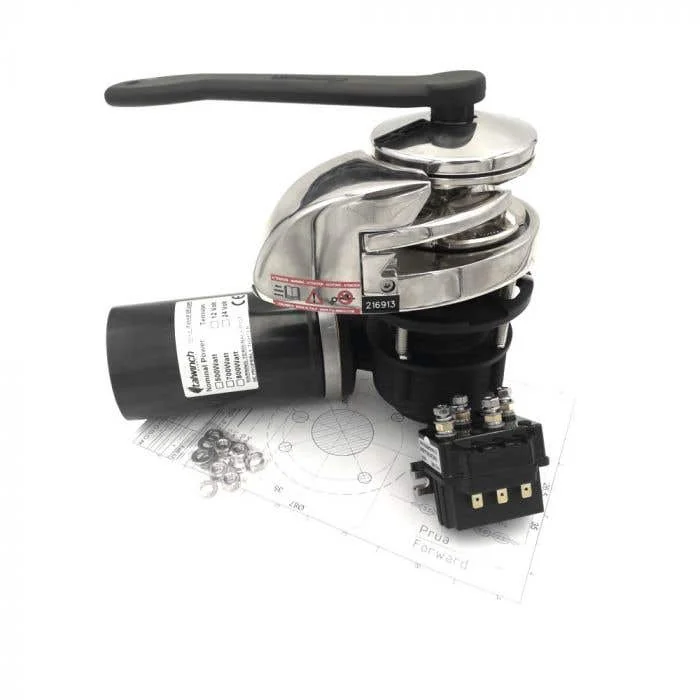

The Italwinch Smart 700W Windlass is a vertical anchor winch designed for small motorboats and light sailboats ranging from 7 to 10 meters in length. It is available in two configurations: with or without a drum. The winch features a mixed gypsy suitable for Ø 6 or 8 mm chain and Ø 12 to 14 mm rope, and comes equipped with an up/down relay box. The Smart 700W is constructed from polished AISI 316 stainless steel, ensuring durability and resistance to marine environments. It includes a built-in chain counter sensor for easy installation and an IP67 waterproof motor that withstands immersion and heavy swells. The winch offers a maximum pulling force of 750 kg, making it suitable for boats up to 10 meters in length. In the event of an electrical failure, the winch can be manually disengaged using the provided lever.
- Motor Voltage: 12V
- Motor Power: 700W
- Current Draw: 90A
- Chain Gypsy Diameter: 6 or 8 mm
- Rope Diameter: 12 to 14 mm
- Maximum Pulling Force: 750 kg
- Working Load: 100 kg
- Recovery Speed: 25 m/min
- Weight: 8.5 kg (without drum), 9.5 kg (with drum)
- Dimensions: Height: 18 cm, Width: 44 cm, Length: 44 cm
- Body: Polished AISI 316 stainless steel
- Motor: IP67 waterproof motor
