Key Features:

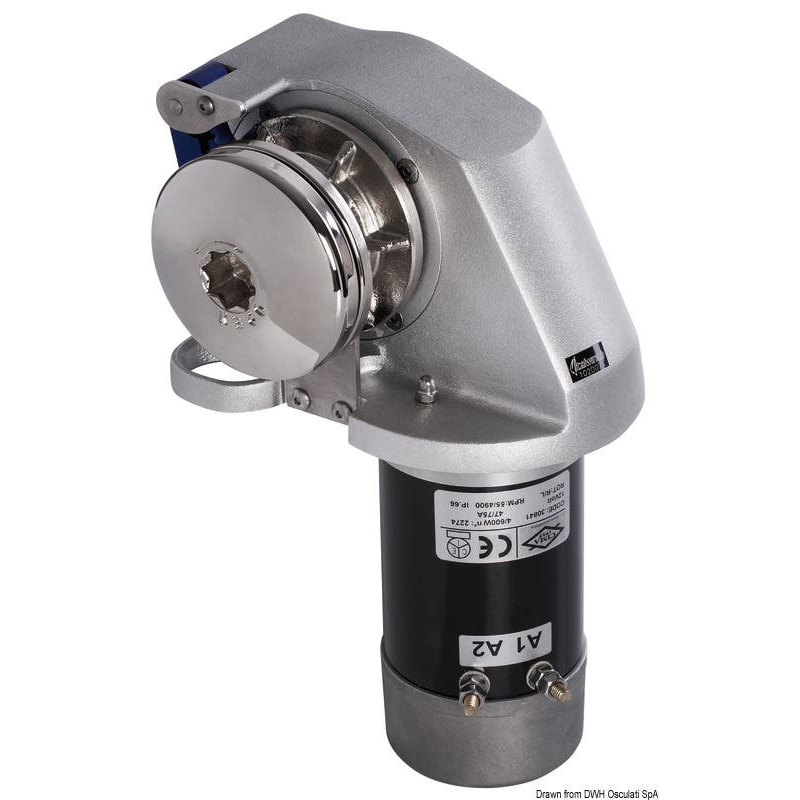

- Compact Design: Ideal for boats up to 9 meters, the OBI500 is designed for installations in confined spaces, such as anchor lockers.
- Dual Chain Compatibility: Equipped with a mixed gypsy that accommodates both 6 mm and 8 mm chains, providing versatility for different anchoring needs.
- Free Chain System: Features a "free chain" system that secures the chain within the gypsy, preventing it from "jumping" during descent and ensuring safe operation.
- Manual Release Mechanism: Includes a manual release lever, allowing operation even in the event of electrical failure.
- Integrated Meter Sensor: Comes standard with a built-in meter sensor, facilitating the subsequent installation of a chain counter.
Technical Specifications:
- Motor Power: 500 W
- Voltage: 12 V
- Current Draw: 60 A
- Chain Gypsy Diameter: 6 mm
- Maximum Pull: 270 kg
- Working Load: 90 kg
- Recovery Speed Under Load: 23 m/min
- Average Absorption: 60 A
- Weight: 9.15 kg
- Dimensions (L x W x H): 45 cm x 45 cm x 18 cm
Materials:
- Body: Anodized aluminum, preventing oxidation and providing an elegant appearance.
- Gypsy: Chrome-plated brass, offering resistance and durability over time.
Compatibility Information:
- Boat Size: Suitable for boats up to 9 meters in length.
- Chain Compatibility: Compatible with 6 mm and 8 mm chains.
- Standard Chain: DIN766 ISO standard.
Package Contents:
- Winch
- Relay box
- Lever
- Drilling template
- Installation and operating instructions
