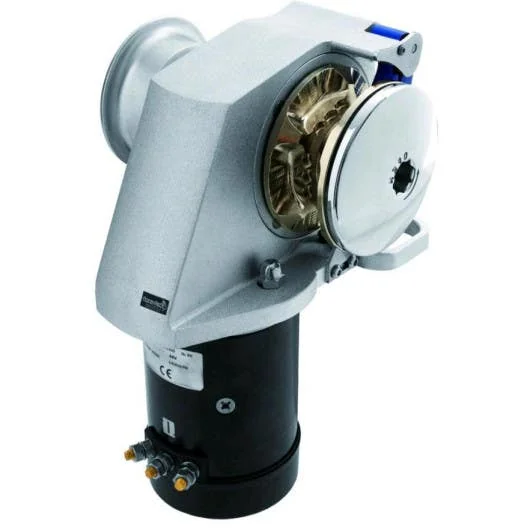

The Italwinch Obi Windlass is a robust and reliable electric horizontal windlass designed for boats up to 14 meters in length. Ideal for installations in confined anchor lockers, it features a durable anodized aluminum body and a chrome-plated brass drum. The windlass is equipped with a mixed drum capable of accommodating 8 or 10 mm chains and ropes ranging from 12 to 16 mm. A built-in chain counter sensor and line tensioner ensure smooth operation, while the "free chain" system prevents the chain from "jumping" during descent, enhancing safety. In case of electrical malfunction, a manual release lever allows for manual operation. The windlass is delivered with its up/down relay for convenient control.
- Powerful Motor: 1500 W electric motor suitable for boats up to 14 meters.
- Durable Construction: Anodized aluminum body and chrome-plated brass drum for resistance and durability.
- Versatile Compatibility: Mixed drum accommodates 8 or 10 mm chains and ropes of 12 to 16 mm.
- Safety Mechanisms: "Free chain" system prevents chain jumping; manual release lever for emergency operation.
- Integrated Sensors: Built-in chain counter sensor and line tensioner for smooth operation.
- Complete Package: Delivered with up/down relay for convenient control.
Technical Specifications:
- Voltage Options: 12 V or 24 V
- Motor Power: 1500 W
- Current Draw: 130 A (12 V) or 70 A (24 V)
- Chain Compatibility: 8 or 10 mm ISO standard chain
- Maximum Pulling Force: 480 kg
- Working Load: 160 kg
- Recovery Speed Under Load: 26 m/min
- Dimensions: Height: 30 cm; Width: 44 cm; Length: 43 cm
- Weight: 17.6 kg
Materials:
- Body: Anodized aluminum
- Drum: Chrome-plated brass
Compatibility Information:
Designed for boats ranging from 9 to 14 meters in length, the Italwinch Obi Windlass is compatible with 8 or 10 mm ISO standard chains and ropes of 12 to 16 mm. It is suitable for both 12 V and 24 V electrical systems.
