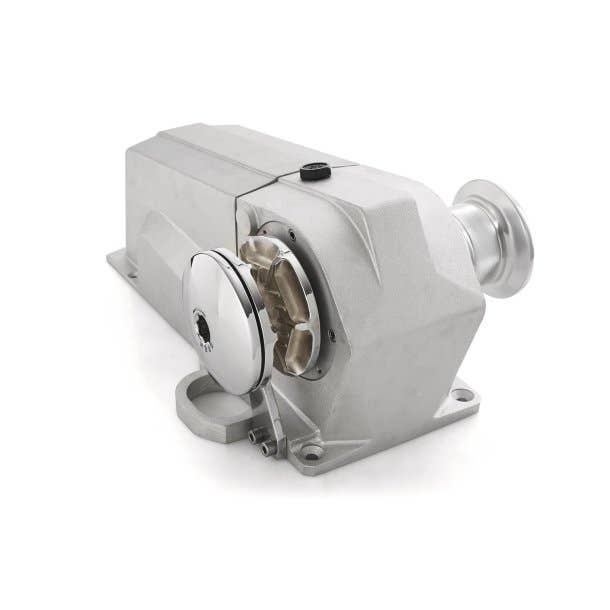

The Italwinch Devon Horizontal Windlass is designed for boats up to 15 meters in length, offering a reliable and space-efficient anchoring solution. Its compact design is ideal for vessels with limited space in the anchor well.
- Horizontal Installation: Optimized for horizontal mounting, making it suitable for boats with confined anchor wells.
- Integrated Drum: Equipped with a drum for tension recovery on the anchor or pendant, enhancing anchoring efficiency.
- Manual Operation Capability: Can be operated manually in case of electrical malfunction, ensuring reliability.
- Chain Counter Sensor: Comes standard with a chain counter sensor for accurate chain measurement.
Technical Specifications:
- Power Options: Available in 1000 W and 1500 W models.
- Voltage Options: 12 V and 24 V configurations.
- Chain Compatibility: Accommodates chains with diameters of 6 mm, 8 mm, or 10 mm (DIN766 or ISO standards).
- Maximum Pulling Force: Up to 1370 kg, depending on the model.
- Lifting Workload: Ranges from 150 kg to 190 kg, based on the specific model.
- Recovery Speed Under Load: Between 25 m/min and 26 m/min, depending on the model.
- Average Current Consumption: Varies from 60 A to 130 A, depending on the model.
- Materials: Constructed with anodized aluminum for the external unit to prevent oxidation; chrome bronze used for the gypsy and drum for enhanced durability.
- Dimensions and Weight: Specific dimensions are not provided; weight ranges from 25 kg to 28 kg, depending on the model.
Compatibility Information:
- Boat Size: Recommended for boats up to 15 meters in length.
- Chain Standards: Compatible with DIN766 and ISO standard chains.
