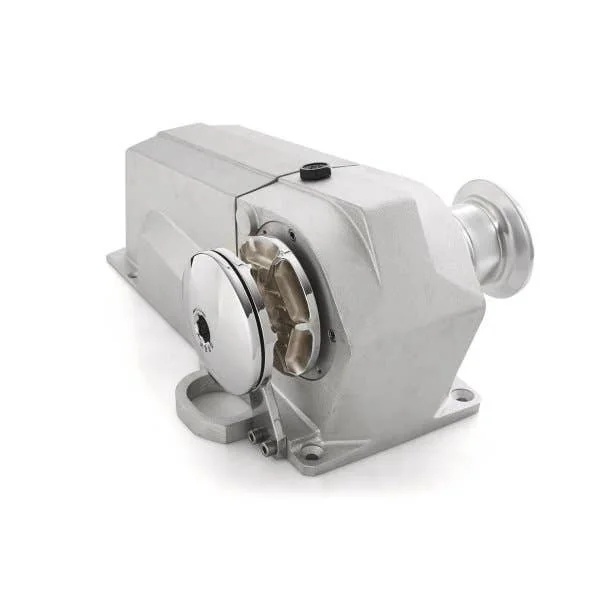

The Italwinch Devon Horizontal Windlass is a robust and reliable electric anchor winch designed for boats up to 14 meters in length. Ideal for vessels with limited space in the anchor well, this windlass features a compact integrated motor and a drum for efficient anchor retrieval.
- Voltage Options: Available in 12V and 24V configurations.
- Power Ratings:
- 12V: 1000W
- 24V: 1000W or 1500W
- Chain Compatibility: Accommodates chain diameters of 6 mm, 8 mm, or 10 mm (DIN 766 or ISO standards).
- Boat Size Compatibility: Suitable for boats ranging from 9 to 14 meters in length.
- Maximum Pulling Force: Up to 570 kg, depending on the model.
- Recovery Speed Under Load: Approximately 25 m/min for 12V models and 26 m/min for 24V models.
- Average Current Consumption:
- 12V: 115 A
- 24V: 60 A (1000W) or 70 A (1500W)
- Manual Operation: Can be operated manually in case of electrical malfunction.
- Integrated Chain Counter Sensor: Provides accurate chain measurement for efficient anchoring.
Technical Specifications:
- Body Material: Anodized aluminum, preventing oxidation and ensuring durability.
- Gypsy and Drum Material: Chrome bronze, offering resistance and longevity.
- Motor Protection: IP66-rated electric motor, dustproof and waterproof for immersion up to 1 meter for 30 minutes.
Dimensions and Weight:
- Weight: Approximately 25 kg
- Dimensions: Specific dimensions not provided; please refer to the manufacturer's specifications for detailed measurements.
Compatibility Information:
- Chain Types: Compatible with DIN 766 and ISO standard chains.
- Boat Size: Recommended for boats from 9 to 14 meters in length.
Package Contents:
- Windlass unit
- Relay box
- Lever
- Drilling template
- Installation and user manual
