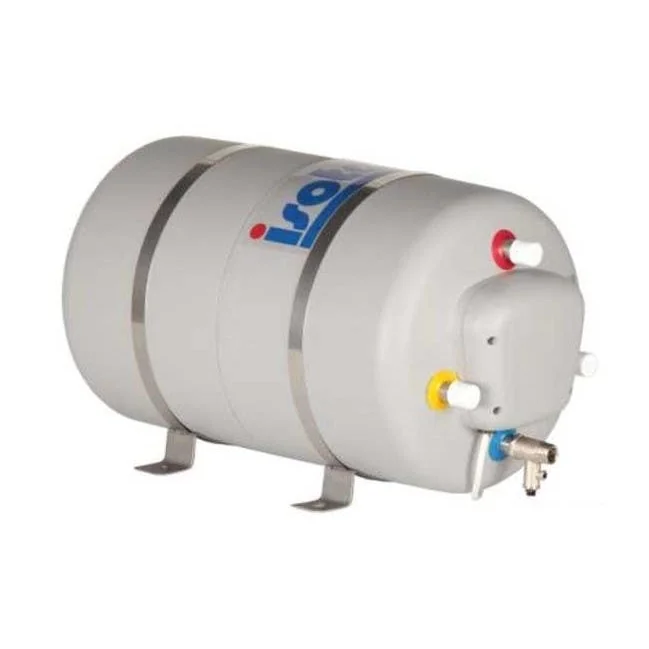

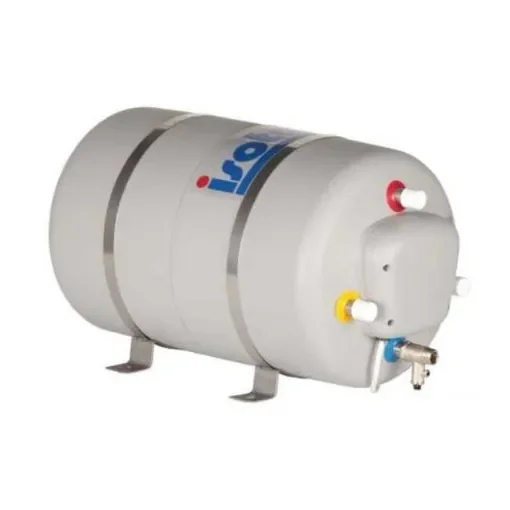

The Indel Webasto Marine Isotemp Spa Water Heater is designed to provide reliable hot water solutions for marine environments, camper vans, and small units. It is available in various capacities ranging from 15 to 60 liters, catering to different needs.
- High-Quality Construction: Features an internal tank and coiled heat exchanger made of AISI 316 stainless steel, ensuring durability and resistance to corrosion.
- Robust Casing: Encased in a grey polypropylene shell, offering strength and longevity.
- Efficient Heating Element: Equipped with a 750 W nickel-plated copper electric heating element, available in both 115V and 230V configurations.
- Safety Mechanisms: Includes a 6 bar safety valve for pressure regulation.
- Insulation: Utilizes expanded polyurethane without CFCs for insulation, promoting energy efficiency.
- Mounting Bracket: Comes with a mounting bracket made of AISI 304 stainless steel for secure installation.
- Optional Thermostatic Mixer: The thermostatic mixer (Part Number: 50.189.58) is available separately for temperature control.
Technical Specifications:
- Capacity: Available in 15, 20, 25, 30, 40, 50, and 60-liter volumes.
- Dimensions: Varies by model; for example, the 15-liter model has dimensions of 450 x 310 mm (L x Ø).
- Weight: Ranges from approximately 10 kg for the 15-liter model to 17 kg for the 60-liter model.
- Rated Pressure: 6 bar.
- Water Connections: 1/2 inch.
- Warranty: 5-year limited warranty on the water tank.
Materials:
- Internal Tank and Heat Exchanger: AISI 316 stainless steel.
- External Casing: Grey polypropylene.
- Heating Element: Nickel-plated copper.
- Insulation: Expanded polyurethane without CFCs.
- Mounting Bracket: AISI 304 stainless steel.
Dimensions and Compatibility:
- 15-Liter Model: 450 x 310 mm (L x Ø); weight: 10 kg.
- 20-Liter Model: 550 x 310 mm (L x Ø); weight: 12 kg.
- 25-Liter Model: 650 x 310 mm (L x Ø); weight: 14 kg.
- 30-Liter Model: 535 x 390 mm (L x Ø); weight: 15 kg.
- 40-Liter Model: 640 x 390 mm (L x Ø); weight: 16 kg.
- 50-Liter Model: 745 x 392 mm (L x Ø); weight: 17 kg.
- 60-Liter Model: 850 x 392 mm (L x Ø); weight: 17 kg.
