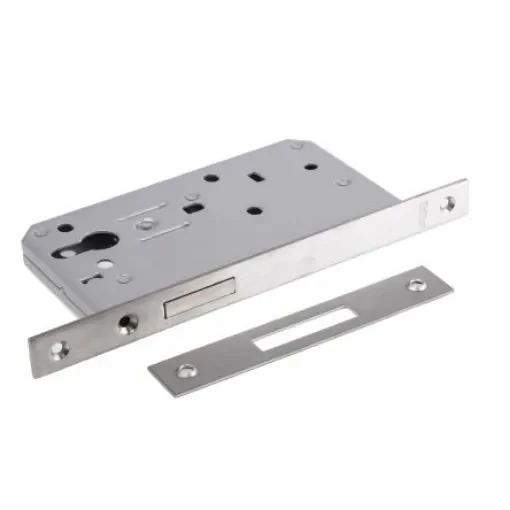

IR Security And Safety Deadlock Cylinder - 5410.60.S.SS

Lock Mechanism = Cylinder
Forend Finish = Stainless Steel
Case Material = Steel
Case Height = 165mm
Case Depth = 93mm
Forend Dimensions = 235 x 20mm
Forend Height = 235mm
Forend Width = 20mm

BS8300, EN 12 209. Euro Profile Cylinder Locks. Silver powder coated mild steel case with satin nickel plated die cast zinc bolt and latch Satin finish, stainless steel forend and strike Designed to match the dimensional characteristics of DIN 18251 with follower to cylinder centres at 72mm. Case pierced to accept bolt through fixings at 38-41mm centres at the follower and the cylinder position 60 mm backset Deadbolt can be thrown and withdrawn from one or both sides as required depending on the cylinder used Quick reversible latch on sashlock Sashlock cylinder to latch function will operate both deadbolt and latch Sashlock suitable for lever handles with 8mm spindle
