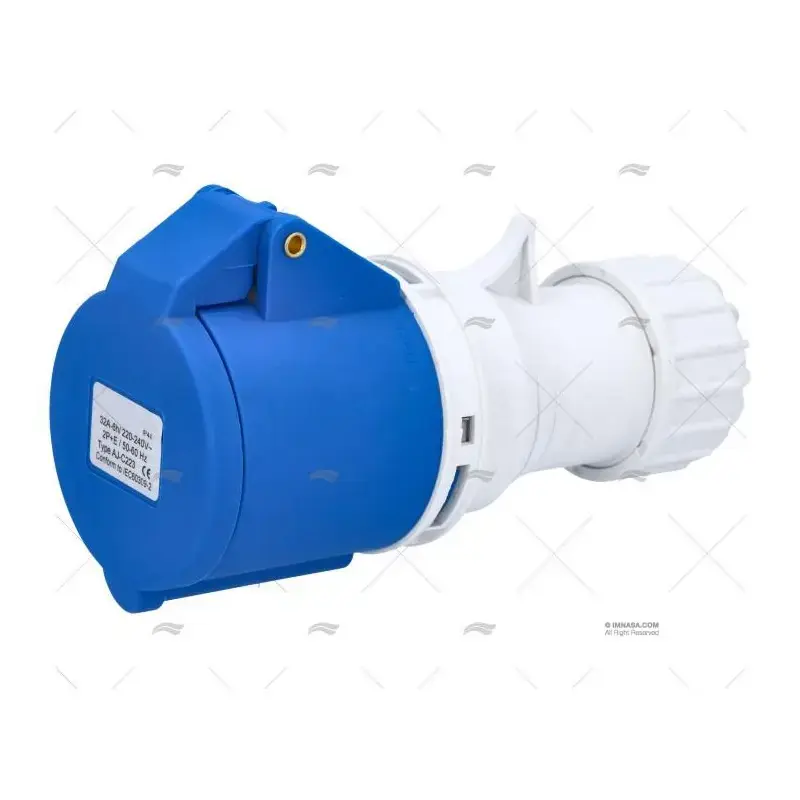

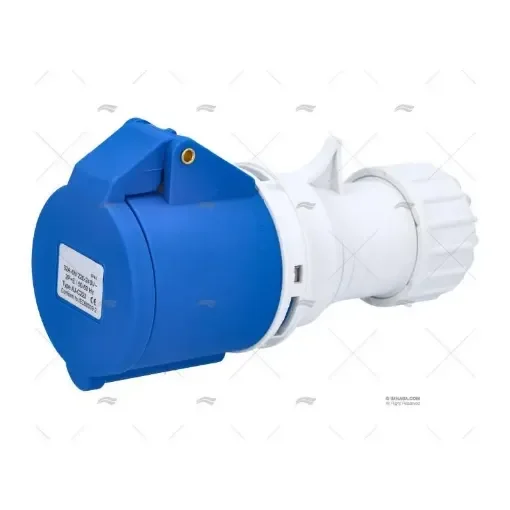

The aerial female plug is a robust and reliable solution for temporary or fixed electrical connections in boats, docks, and shipyards. Designed to withstand the demanding marine environment conditions, this plug guarantees a stable and secure connection.
Technical Features
- Rated voltage: 230V
- Maximum current: 32A
- Poles: 3 (phase, neutral, ground) – 6H
- Protection rating: IP44 (splash and dust resistant)
- Reference: 64000289
Advantages
- High resistance plastic material and good insulation.
- Secure lock and robust terminals for frequent use.
- Ergonomic handling and easy installation.
Applications
- Power outlet connections in recreational and professional boats.
- Temporary electrical installations in marinas, shipyards, boatyards, and ports.
- Compatible with standard CEE (IEC 60309) systems.
Standards and Compatibility
- Compatible with 32A blue industrial pin plugs at 230V.
- Meets maritime electrical safety standards for port connections.
Usage Tips
- Check that terminals are well tightened and free from corrosion.
- Do not use under heavy rain or continuous immersion (IP44: splash resistant only).
| Feature | Value |
|---|
| Rated voltage | 230V |
| Maximum current | 32A |
| Poles | 3 (P+N+E) - 6H |
| Protection rating | IP44 |
