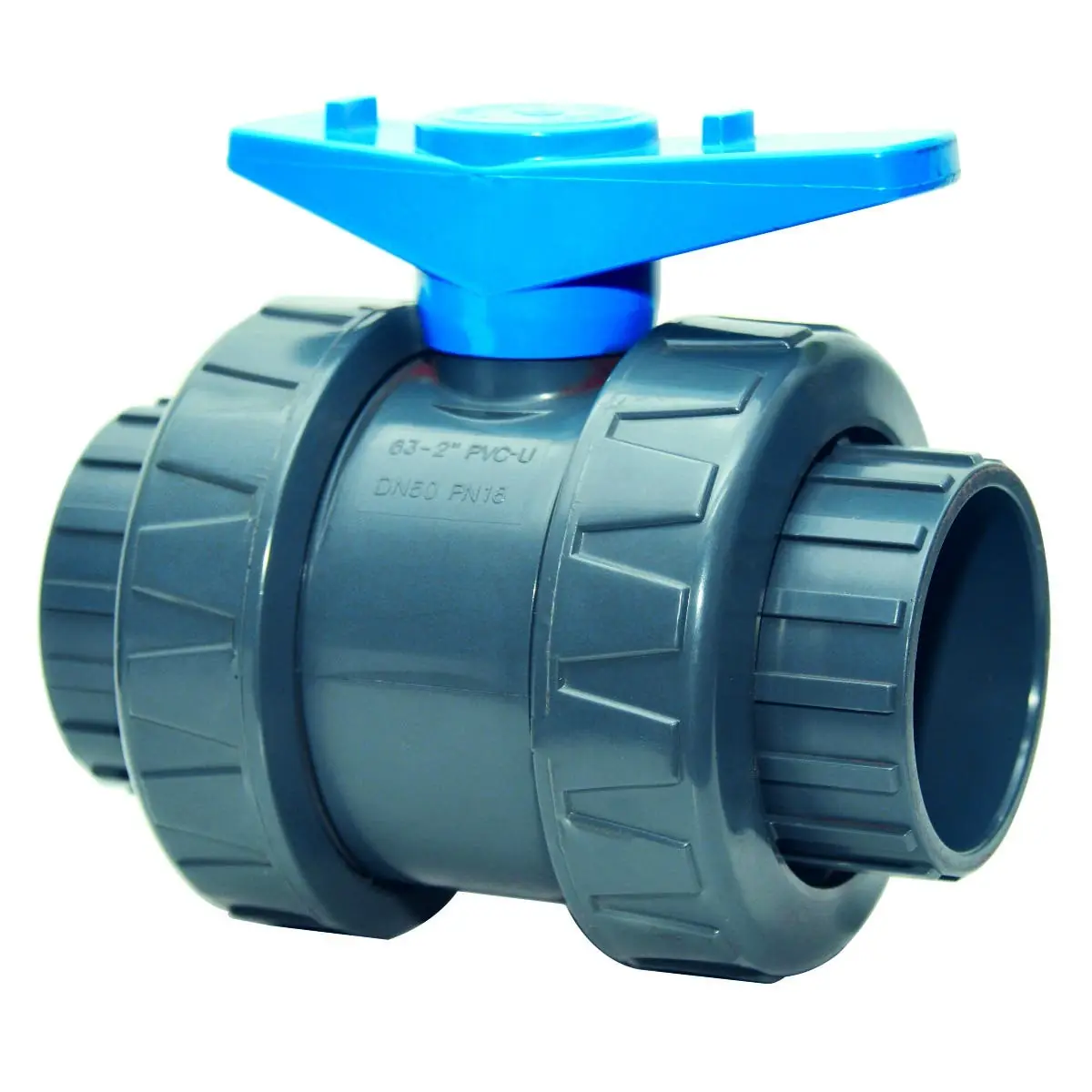

The Interplast Double Union Female Valve Ø50 - 16 Bars is a robust PVC-U ball valve designed for swimming pool installations, water supply and distribution networks, irrigation, and other fluid control applications.
- Double Union Design: Facilitates easy installation and maintenance by allowing the valve to be detached without disturbing the connected pipes.
- Blue Handle: Provides easy identification and ergonomic operation.
- Full Bore Passage: Ensures minimal pressure drop and efficient flow.
- Operating Temperature: Suitable for temperatures ranging from 0°C to +60°C.
- BSP Threaded Connection: Compatible with standard BSP threaded fittings.
Technical Specifications:
- Diameter: 50 mm
- Nominal Pressure (PN): 16 bar
- Body and Ball Material: PVC-U
- Ball Seals: HDPE
- O-Rings: Double EPDM O-rings at the axis
- Handle Material: Polypropylene
- Spacing: 143.5 mm
- Net Weight: 0.85 kg
Materials:
- Body and Ball: PVC-U (Polyvinyl Chloride Unplasticized)
- Ball Seals: HDPE (High-Density Polyethylene)
- O-Rings: EPDM (Ethylene Propylene Diene Monomer)
- Handle: Polypropylene
Dimensions:
- Valve Diameter: 50 mm
- Spacing Between Unions: 143.5 mm
- Net Weight: 0.85 kg
Compatibility Information: This valve is compatible with standard 50 mm PVC-U pipes and BSP threaded fittings, making it suitable for various fluid control applications, including swimming pools, irrigation systems, and water distribution networks.
