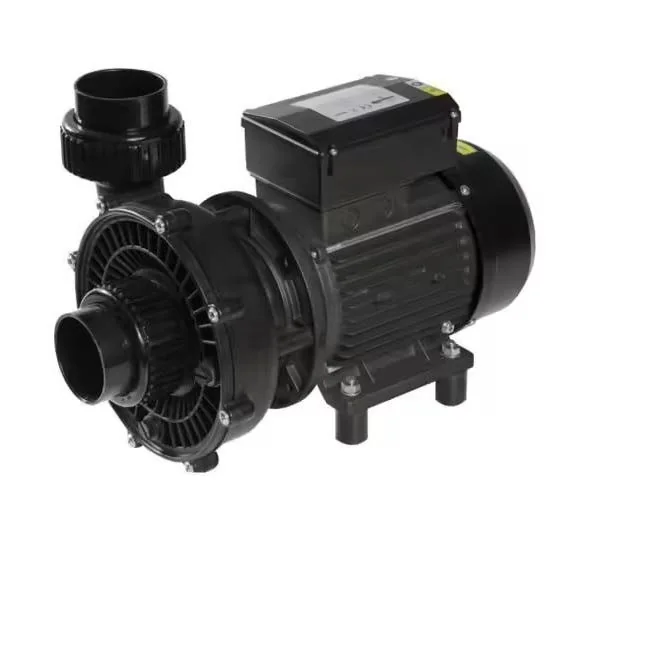

The Desjoyaux PHT Compatible Pool Pump by Interplast is a high-performance filtration pump designed to seamlessly replace Desjoyaux pumps in swimming pool systems. Manufactured by ACIS, this pump offers an economical and efficient solution suitable for all filter blocks.
- High-Temperature Resistance: Equipped with a motor capable of withstanding temperatures up to 65°C, making it ideal for installations in poorly ventilated or sun-exposed areas.
- Ultra-Silent Operation: Engineered for quiet performance, ensuring minimal noise disruption.
- Corrosion-Resistant Construction: Features a resin-coated motor (excluding bearing and capacitor) and 100% stainless steel 304 bolts and screws, enhancing durability and longevity.
- Seawater and Salt Treatment Compatibility: Suitable for use with seawater and saltwater treatment systems, expanding its applicability.
- Balanced Rotor Design: Ensures smooth operation and reduces mechanical stress.
- Double-Sealed Bearing: Incorporates a 2RS C3 bearing with high-temperature class H rating for enhanced reliability.
- Friction/Fusion Shaft: Constructed from stainless steel 316L, fully covered by the turbine tail to prevent contact with the pumped liquid.
- Motor Specifications: IP55 protection class, Class F insulation, operating at 230V/50Hz.
- Warranty: Comes with a 5-year motor warranty, providing peace of mind to users.
Technical Specifications
- Model Options:
- Solubloc 10: 0.4 kW power rating, replaces the Desjoyaux P18 filtration pump.
- Solubloc 20: Replaces the Desjoyaux P25 model.
- Motor Power: 0.4 kW
- Voltage: 230V
- Frequency: 50Hz
- Protection Class: IP55
- Insulation Class: Class F
- Temperature Resistance: Up to 65°C
- Material Composition:
- Motor Coating: Resin-coated (excluding bearing and capacitor)
- Bolts and Screws: 100% stainless steel 304
- Shaft: Stainless steel 316L
- Bearing Type: Double-sealed bearing 2RS C3, high-temperature class H
- Rotor Design: Balanced rotor
- Compatibility:
- Filter Blocks: Compatible with Desjoyaux filtration blocks from 1995 onwards
- Installation: Can be installed without modifications to existing piping
- Water Types: Suitable for seawater and saltwater treatment systems
