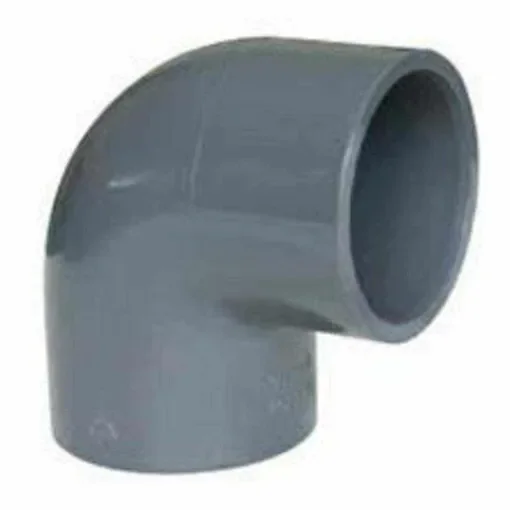

The 90° Female Elbow D50 - 16 Bars is a high-quality PVC-U fitting designed to facilitate efficient directional changes in piping systems, particularly in pool filtration setups. Manufactured by INTERPLAST, this elbow ensures a robust and reliable connection, enhancing the overall performance and longevity of your plumbing system.
- Easy and Quick Installation: The elbow features a solvent cement socket connection, allowing for straightforward and secure assembly.
- High Pressure Rating: Engineered to withstand a maximum pressure of 16 bars, ensuring durability and safety in demanding applications.
- Compatibility: Ideal for integration with various filtration systems, providing a seamless connection between piping components.
- Durability: Constructed from unplasticized polyvinyl chloride (PVC-U), offering excellent chemical resistance and a long service life.
- Warranty: Comes with a 2-year compliance guarantee, reflecting the manufacturer's confidence in product quality.
Technical Specifications:
- Type of Connection: Solvent cement socket connection
- Diameter: 50 mm
- Material: PVC-U
- Maximum Pressure: 16 bars
- Temperature Range: 0°C to 60°C
- Warranty: 2 years
Materials: The elbow is made from unplasticized polyvinyl chloride (PVC-U), a thermoplastic material known for its high strength, durability, and resistance to corrosion and chemicals. This material choice ensures a long-lasting and reliable performance in various applications.
Dimensions: The 90° Female Elbow D50 - 16 Bars has the following dimensions:
- Outer Diameter (D0): Approximately 61.90 mm
- Inner Diameter (d1): Approximately 50.40 mm
- Socket Depth (d2): Approximately 49.90 mm
- Wall Thickness (T): Approximately 31.20 mm
- Length (L): Approximately 57.70 mm
- Height (H): Approximately 88.70 mm
These dimensions are based on standard specifications for 50 mm PVC-U 90° elbows.
Compatibility Information: This elbow is compatible with standard 50 mm PVC-U pipes and fittings, making it suitable for various applications, including pool filtration systems, potable water distribution, and industrial process pipelines.
