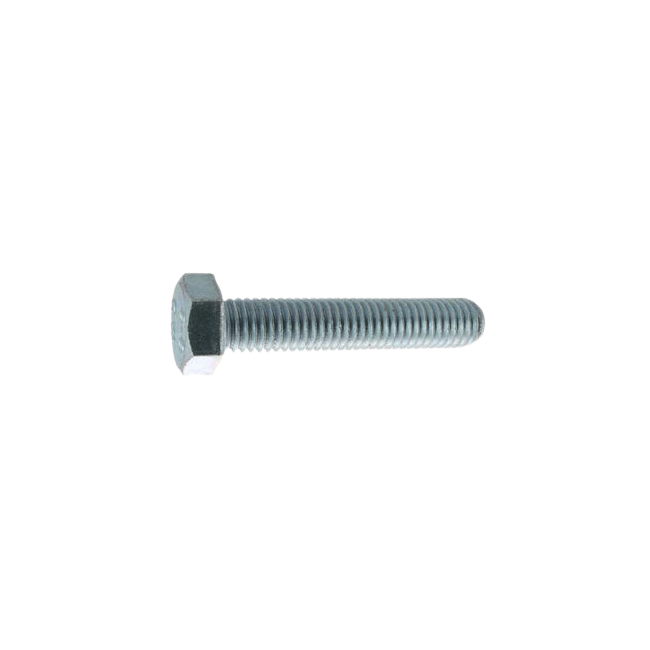

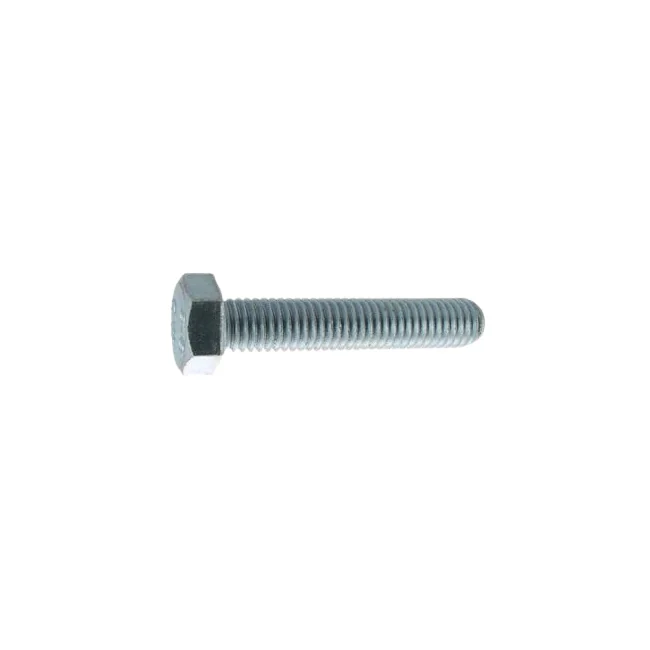

This Galvanized Steel Hexagon Head Full Threaded Screw, Grade 8.8, conforms to DIN 933 standards and is suitable for applications requiring high mechanical strength and corrosion resistance.
- Material: High-quality steel with a hot-dip galvanized coating for enhanced corrosion protection.
- Mechanical Strength: Grade 8.8, indicating a minimum tensile strength of 800 N/mm² and a minimum yield strength of 640 N/mm².
- Thread Type: Metric thread, fully threaded along the entire length of the screw.
- Head Type: Hexagon head for compatibility with standard hex wrenches or sockets.
- Surface Treatment: Hot-dip galvanized finish to provide a durable, corrosion-resistant surface.
Technical Specifications
| Thread Diameter (d) | Pitch (p) | Head Height (k) | Wrench Size (s) | Length (L) | Minimum Tensile Strength (N/mm²) | Minimum Yield Strength (N/mm²) |
|---|
| M8 | 1.25 mm | 5.3 mm | 13 mm | Customizable | 800 | 640 |
| M10 | 1.5 mm | 6.4 mm | 17 mm | Customizable | 800 | 640 |
| M12 | 1.75 mm | 7.5 mm | 19 mm | Customizable | 800 | 640 |
| M14 | 2.0 mm | 8.8 mm | 22 mm | Customizable | 800 | 640 |
| M16 | 2.0 mm | 10 mm | 24 mm | Customizable | 800 | 640 |
Materials
- Steel: The core material is high-quality steel, providing strength and durability.
- Galvanized Coating: A hot-dip galvanized coating offers enhanced corrosion resistance, making it suitable for outdoor and marine environments.
Dimensions
- Thread Diameter (d): Available in M8, M10, M12, M14, and M16 sizes.
- Pitch (p): Standard metric pitches corresponding to each thread diameter.
- Head Height (k): Varies by size, with M8 at 5.3 mm, M10 at 6.4 mm, M12 at 7.5 mm, M14 at 8.8 mm, and M16 at 10 mm.
- Wrench Size (s): Standard sizes for each thread diameter, ensuring compatibility with common tools.
- Length (L): Customizable based on application requirements.
Compatibility Information
These screws are compatible with standard metric nuts and threaded holes, adhering to DIN 933 standards. The hot-dip galvanized coating ensures compatibility with other galvanized components, maintaining corrosion resistance throughout the assembly.
