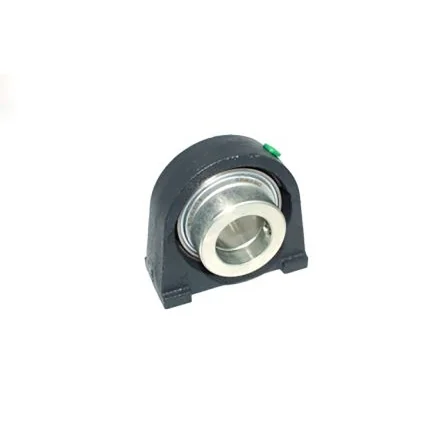

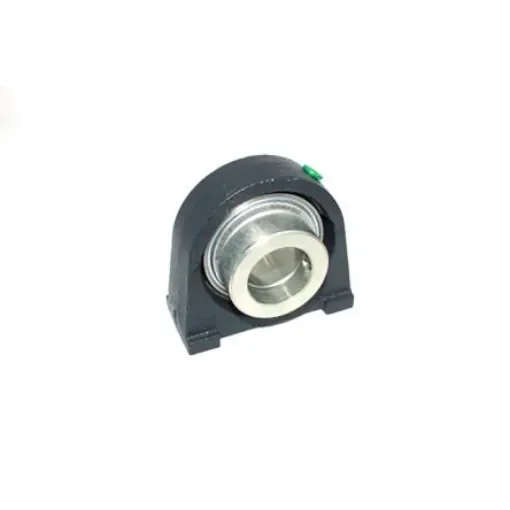

INA RSHE30-XL-N Plummer Block House -, 30mm ID
Durable INA plummer block bearing unit with a 30mm inner diameter for reliable performance.
Manufacturer part number: RSHE30-XL-N
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 30mm
Bearing Unit Type = Plummer Block
Material = Cast Iron
Centre Height = 42.9mm
Mount Hole Size = M10
Length = 98mm
Depth = 48.5mm
Overall Height = 82mm
Mount Hole Centre-to-Centre = 76.2mm
INA housing units are available as plummer block, flanged and take-up housing units in numerous different designs. The units are ready-to-fit and comprise INA cast iron or sheet steel housings in which INA radial insert ball bearings are fitted. In order to ensure function and reliability under all operating conditions, the bearings and housings are matched to each other. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The units are used predominantly as locating bearings, but are also suitable as non-locating bearings under low loads and speeds. The housings are screw mounted on the adjacent construction. Less stringent tolerances are sufficient for the screw mounting surfaces.
