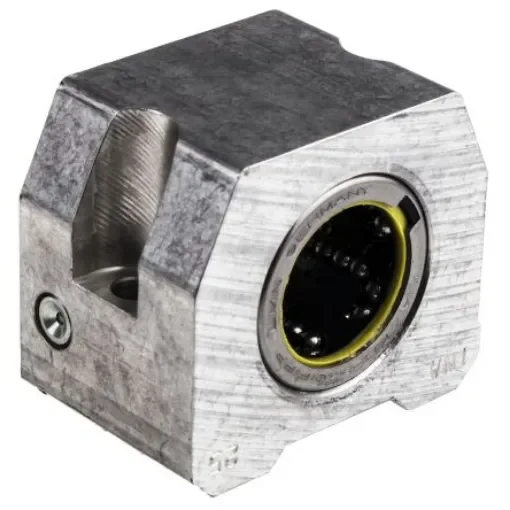

INA Linear Ball Bearing Unit KGHK25-B-PP-AS, KGHK

Bearing Inside Diameter = 25mm
Bearing Unit Type = Linear Ball Bearing Unit
For Bearing Type = Closed
Housing Dimensions = 40.2 x 60 x 52.5mm
Dynamic Load Rating = 2280N
Static Load Rating = 1670N
Housing Width = 60mm
Housing Height = 52.5mm
Housing Length = 40.2mm
Series = KGHK

Linear bearings and linear bearing and housing units are available in the compact, light, heavy duty, machined and plain bearing range. The bearings can support high loads while having a relatively low mass and allow the construction of linear guidance systems with unlimited travel. Each series has quite specific characteristics that makes it particularly suitable for certain applications.Linear bearings Compensation of misalignment Linear bearing and housing units Simple location Housing designs Highly cost-effective Sealing Lubrication Operating temperature Operating limits Suffixes Compact range Linear ball bearings Seals Linear ball bearing and housing units Anti-corrosion protection
