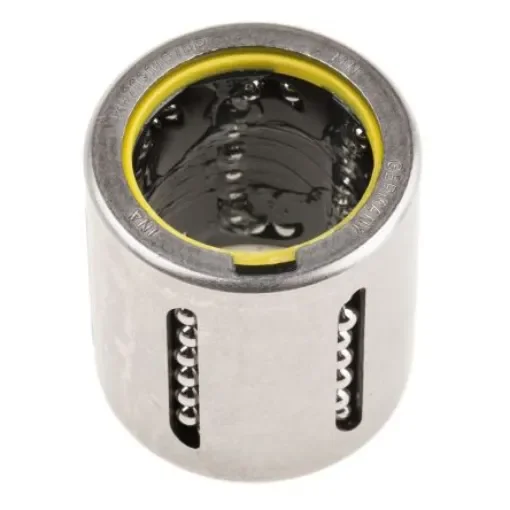

INA KH20-PP Linear Ball Bearing- Both Sides Sealed 20mm I.D, 28mm O.D
Durable INA linear ball bearing with both sides sealed for enhanced performance and reduced maintenance.
Manufacturer part number: KH20-PP
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 20mm
Outside Diameter = 28mm
Race Width = 30mm
Ball Bearing Type = Linear Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Polyamide
Number of Rows = 1
Static Load Rating = 1.01kN
Dynamic Load Rating = 1.17kN
Bore Type = Parallel
Partial Bearing Code = KH20PP
Linear Ball Bearings. INA from Schaeffler linear ball bearings KH and linear ball bearing and housing units of the compact range have a small radial design envelope and are economical. Their low radial section height automatically makes them attractive for applications in which only a small amount of radial space is available. The bearings have an outer ring with openings and contain a ball and cage assembly with a plastic cage. The outer ring is formed and hardened. The balls undergo return travel along the openings in the outer ring. The bearings are available in an open version and with lip seals on both sides (suffix PP). The end face seals have two seal lips; the outer lip prevents the ingress of contamination, the inner lip retains the lubricant in the bearing. Features and Benefits. • Lower operating costs. • Reduced maintenance due to improved lubrication. • Lower heat generation. • Less noise. Product Application Information. Due to the closed design, these linear bearings are suitable for use on shafts. Suffixes. PP - Lip seals on both sides
