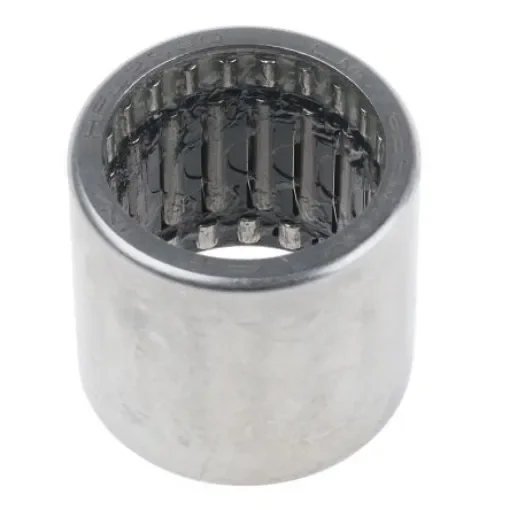

INA HFL2530-L564 Sprag Clutch Bearing 25mm I.D., 32mm O.D., 30mm Race Width
High-performance INA sprag clutch bearing for precise indexing and high torque applications.
Manufacturer part number: HFL2530-L564
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 25mm
Outside Diameter = 32mm
Torque = 66Nm
Race Width = 30mm
Series = HFL
Over-running Speed = 5500rpm
Dynamic Load Rating = 10600N
Static Load Rating = 14000N
Drawn Cup Roller Clutches. INA from Schaeffler drawn cup roller clutches are one-way clutches comprising thin-walled, drawn outer rings with a series of ramps on the inside diameter. There are also plastic cages, pressure springs and needle rollers. They can transmit high torques in one direction and are compact in a radial direction. Drawn cup roller clutches give precise indexing, since the individual spring loading of the needle rollers ensures continuous contact between the shaft, needle rollers and ramps. They allow high indexing frequencies due to their low mass and the resulting low moment of inertia of the clamping elements. They also have a low overrunning frictional torque. Features and Benefits. Lower operating costs. Reduced maintenance due to improved lubrication. Lower heat generation. Less noise. Roller clutches, HF series, do not have a bearing arrangement and can only transmit torques. Roller clutches, HFL series, have an integral plain or rolling bearing arrangement and can support torques and radial forces. Product Application Information. Drawn cup roller clutches can be used in various applications such as indexing clutches, back-stopping clutches and overrunning clutches. In these cases, the drawn cup roller clutch performs an overrunning or locking function. Suffixes. KF - Plastic pressure springs
