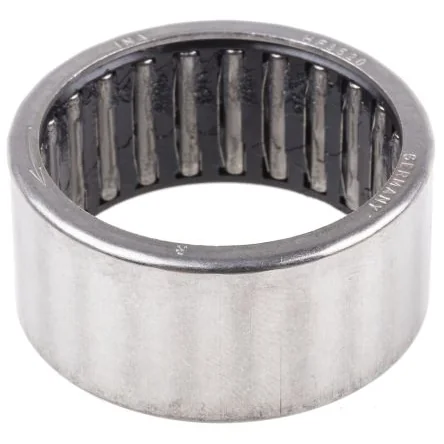

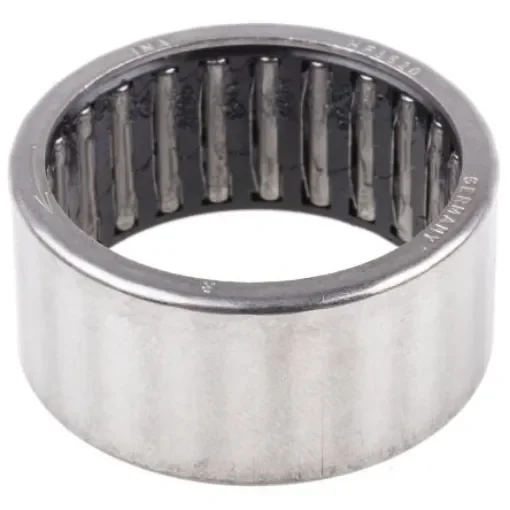

INA HF3520-L564 Sprag Clutch Bearing 35mm I.D., 42mm O.D., 20mm Race Width
High-performance INA sprag clutch bearing for efficient torque transmission.
Manufacturer part number: HF3520-L564
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 35mm
Outside Diameter = 42mm
Torque = 121Nm
Race Width = 20mm
Series = HF
Over-running Speed = 3900rpm
Drawn cup roller clutches are one-way clutches comprising thin-walled, drawn outer rings with a series of ramps on the inside diameter, plastic cages, pressure springs and needle rollers. They can transmit high torques in one direction and are particularly compact in a radial direction. The roller clutches are available with and without bearing arrangements. Drawn cup roller clutches give very precise indexing, since the individual spring loading of the needle rollers ensures continuous contact between the shaft, needle rollers and ramps.Drawn cup roller clutches without bearing arrangement With knurling Drawn cup roller clutches with bearing arrangement With knurling Sealing Lubrication Operating temperature Suffixes
