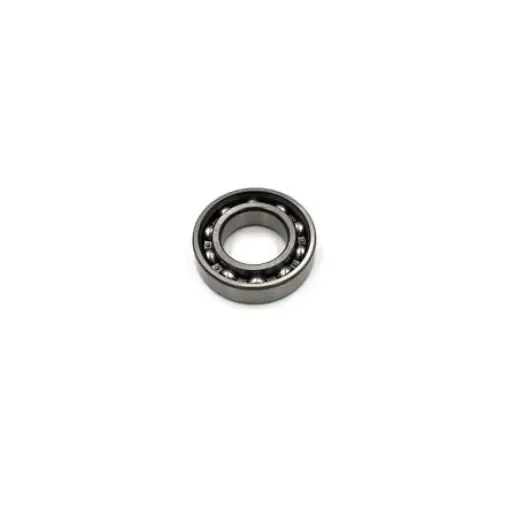

INA 6211-C Single Row Deep Groove Ball Bearing- Open Type 55mm I.D, 100mm O.D

Inside Diameter = 55mm
Outside Diameter = 100mm
Race Width = 21mm
Ball Bearing Type = Single Row Deep Groove Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Steel
Number of Rows = 1
Static Load Rating = 29kN
Dynamic Load Rating = 46kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 6211

High and very high speeds are required The bearing arrangement must be operated with very low friction Very low running noise is required, without reducing the speed, load carrying capacity and operating life of the bearing (Generation C) High demands are made on the sealing of the bearing, without increasing heat generation or limiting the speed (Generation C) The bearing position is to be designed particularly economically Double row bearings can be considered for bearing arrangements where: The load carrying capacity of single row deep groove ball bearings is no longer sufficient Axial loads in both directions and/or tilting moments must be supported in addition to radial loads A high load carrying capacity is required and the design envelope available in a radial and axial direction is relatively small
