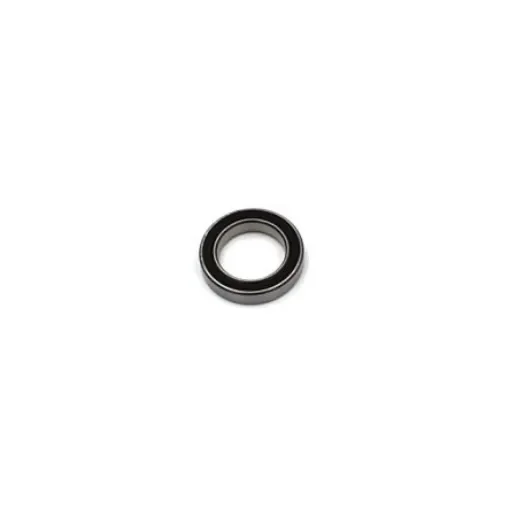

INA 61905-2RSR-HLC Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 42mm O.D

Inside Diameter = 25mm
Outside Diameter = 42mm
Race Width = 9mm
Ball Bearing Type = Single Row Deep Groove Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Steel
Number of Rows = 1
Static Load Rating = 4.55kN
Dynamic Load Rating = 7.4kN
Bore Type = Parallel
Bearing Series = 1 Extra Light Thrust
Partial Bearing Code = 61905

High and very high speeds are required The bearing arrangement must be operated with very low friction Very low running noise is required, without reducing the speed, load carrying capacity and operating life of the bearing (Generation C) High demands are made on the sealing of the bearing, without increasing heat generation or limiting the speed (Generation C) The bearing position is to be designed particularly economically Double row bearings can be considered for bearing arrangements where: The load carrying capacity of single row deep groove ball bearings is no longer sufficient Axial loads in both directions and/or tilting moments must be supported in addition to radial loads A high load carrying capacity is required and the design envelope available in a radial and axial direction is relatively small
