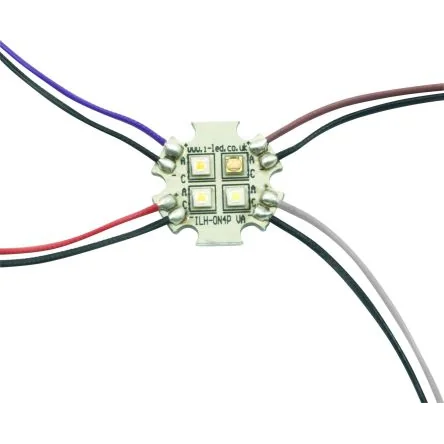

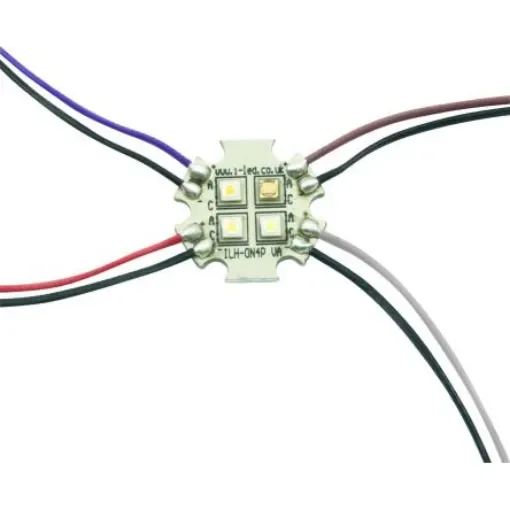

ILS ILH-OW04-HWNU-PC221-WIR200., LED Array, 4 Tuneable White LED (2700 K, 6500 K)

These products require suitable heatsinks to avoid overheating in normal operation. OSLON SSL 150 Tuneable White LED Arrays. Using the latest OSLON® SSL 150 devices from Osram Opto, these tuneable white LED modules from ILS incorporate LEDs of different white colour temperatures in a single package. The perceived output colour can be changed by varying the balance of currents through each of the different LEDs. ILS tuneable white products are compact, powerful LED light sources built on aluminium substrates for optimal thermal management. The combination of small light-emitting area and high lumen output devices provides excellent optical properties with a wide beam angle. The low thermal resistance of 7°C/W ensures cool running and a highly efficient lighting product. Typical uses for tuneable white LED modules include domestic and office lighting, decorative and accent lighting, task lighting and retail or entertainment lighting applications. A dedicated PSU/Controller for Tuneable White LEDs is avialble; see ; 122-5174 122-5174. Up to 1000mA per chip operating current Integral silicone resin lenses give 150° beam angle Up to 100,000 hour operational lifetime to 70% of original brightness Modules are supplied with 200mm connecting wires Mounting holes using M3 screws allows easy installation Modules can be fitted with secondary reflectors
