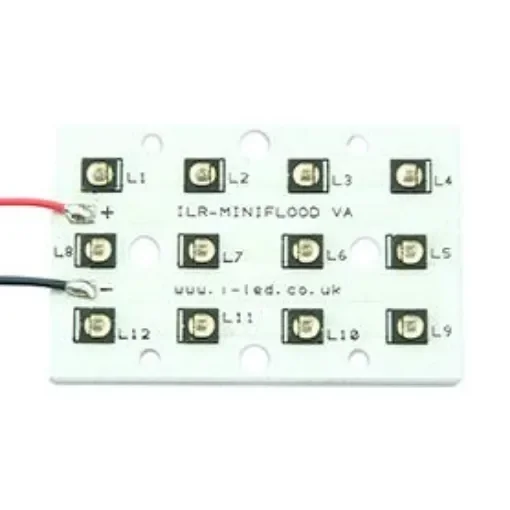

ILR-IW12-85SL-SC221-WIR200. ILS, ILR-IW12 850nm IR LED, SFH4716AS SMD package

Mounting Type = Surface Mount
Angle of Half Intensity = ±75°
Number of LEDs = 12
Number of Pins = 2
Dimensions = 30 x 46.5 x 3.5mm
Lens Shape = Rectangle
Series = ILR-IW12
Maximum Supply Voltage = 38.4V

At the heart of each MiniFlood are 12 OSRAM IR OSLON® Black Series LED, which is today’s smallest infrared LED with more than one watt of optical power. The small package with an integrated lens allows superior and compact arrangements of very high power density. MiniFloods are compact, powerful LED light sources built on aluminium substrates for optimal thermal management. Available with 200mm wires as standard.Up to 100,000 hour lifetime to 70% of original brightness Mounting holes using M3 screws allows easy installation Secondary Lenses can be fitted Suitable Heat Sinks available Matching Power Supply available MiniFloods can be linked together to produce longer chains Current range 100 to 1,000mA - can be pulsed up to 5 Amps
