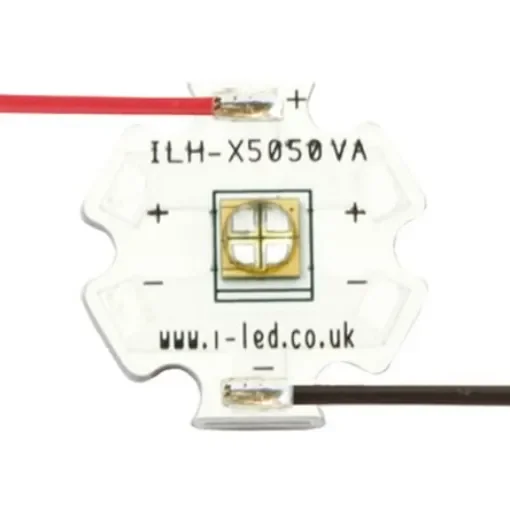

ILH-XQ01-S380-SC211-WIR200 Intelligent LED Solutions, N5050 1 Powerstar Series UV LED, 390nm 1000mW 135 °, 4-Pin

Number of LEDs = 1
Peak Wavelength = 390nm
Radiant Flux = 1000mW
Viewing Angle = 135 °
Lens Shape = Dome
Number of Pins = 4
Mounting Type = Surface Mount
Height = 4.55mm
Length = 21mm
Width = 20mm
Series = N5050 1 Powerstarmm

UV LEDs emit ultraviolet light which can be hazardous to the human eye. Do not look at operating UV LEDs without necessary skin and eye protection.. Intelligent LED Solutions UV PowerStar, ILH-Xx01-Sxxx-SC211-WIR200 Series. The ILH-Xx01-Sxxx-SC211-WIR200 series, from Intelligent LED Solutions (ILS), are a family of compact and powerful UV LED arrays. The arrays consist of a TSLC LED mounted on to an ILS UV PowerStar board. This family of UV LED arrays comes in a variety of TSLC LED options, all of which are compact, high quality and reliable. TSLC UV LEDs also offer a high radiometric power density and design flexibility. Built on an aluminium substrate, the UV PowerStar arrays offer optimal thermal management. They have been designed primarily for industrial applications, for example; polymer curing, ink curing, counterfeit detection, aquarium lighting, medical and DNA sequencing and inspection equipment. Features of the UV PowerStar family: Variety of TSLC chip options Mounting holes using M3 screws 200 mm connecting wires PowerStars can be linked together to produce longer chains. TSLC LEDs and viewing angle: C3535 - 125° N3535 - 125° N5050 - 65° or 135° S5050 - 110° T7070 - 65° U9090 - 140°
