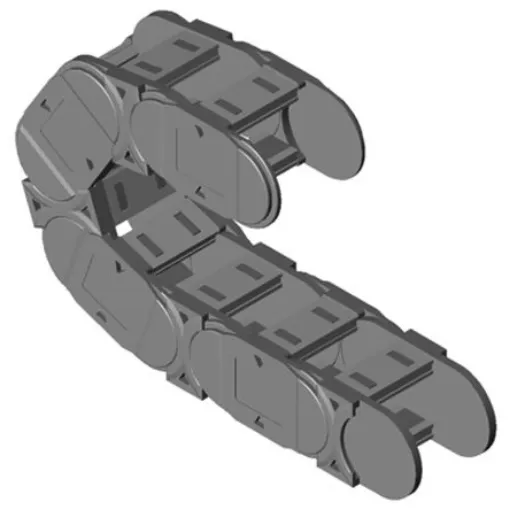

Igus E4.32, e-chain Black Cable Chain - Flexible Slot, W100 mm x D54mm, L1m, Igumid G - E4.32.10.150.0

Series E4.32 Cable Chain. The Igus Series E4.32 cable chain snaps open on both sides with crossbars at every link. Straight run through inner / outer-link design Low-noise operation due to integrated brake on the radial stop dogs The tongue and groove design facilitates very high stiffness and load capacity in the presence of shear forces 15% more tensile strength (compared to the best old Series E4), extended unsupported length through improved stop dog system and vertical radial stops New opening crossbar available for faster assembly/disassembly - 385.X. Q New separation kit increases the service-life of your cables by up to 4 times Version NC "no camber" possible by simply rotating the outer link without retrofit e-chain® links removable on both sides The lid on the e-tube pivots and is removable Cable-friendly, wide polymer crossbars Optimized gliding surfaces – long service-life Smooth outer contour, reduced dirt adhesion Strain relief possible with strain relief crossbar on the mounting bracket When to use E4.32: If a robust height of 32mm is required If inner widths up to 400mm are required For unsupported lengths up to 3.25m and fill weights up to 15kg/metre For long travel up to 200m Also suitable for side-mounted, vertical standing of hanging applications Please see RS ; 796-6774 796-6774 , ; 796-6783 796-6783 or ; 796-6786 796-6786 for end brackets
