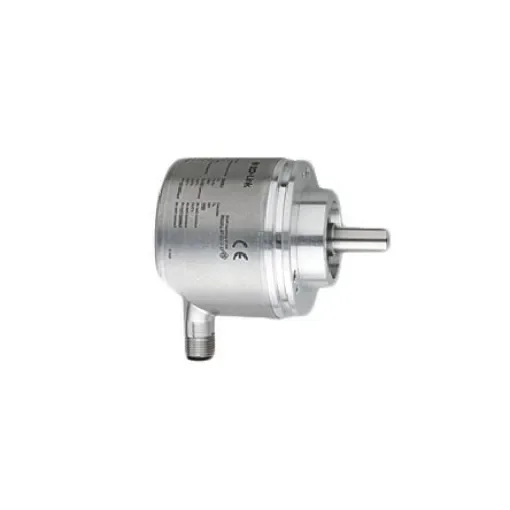

ifm electronic Incremental Incremental Encoder, 10000 ppr, HTL, TTL Signal, Solid Type, 10mm Shaft - RVP510
High-performance incremental encoder with 10000 PPR for accurate position feedback.
Manufacturer part number: RVP510
Encoder Technology = Incremental
Pulses Per Revolution = 10000
Maximum Revolutions = 12000rpm
Output Signal Type = HTL, TTL
Shaft Type = Solid
Shaft Diameter = 10mm
Resolution = 10000 I/U
IP Rating = IP64
Overall Height = 64mm
Overall Width = 58.6mm
Overall Depth = 80.2mm
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +85°C
Switching Frequency = 1 MHz
Wide range of accessories also available: software, cable, memory plug, sockets, spring discs, couplings, measuring wheels and brackets. Programmable Encoders. IFM range of incremental programmable encoders. Solid or hollow shaft encoder versions Magnetic detection system Synchro or clamping flange versions Resolution 1..9999
