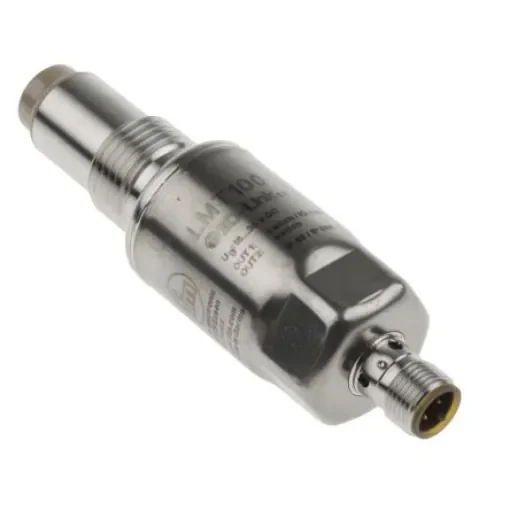

ifm electronic Electronic Level Probe, PNP NO/NC Output, Flush Mount, FPM, PA12, PEEK, Stainless Steel Body - LMT100

IFM Electronic Level ProbeThe ifm electronic level probe has a supply voltage of 24VDC. It is used in flush mounting, discrete level sensors for liquid, powder and oil. Its compact sensor tip allows integration even in small DN25 pipes. The factory setting to different fluid types eliminates the need for an adjustment. This point level sensor is characterised by a hygienic design with the maintenance-free sealing concept. G 1/2 male is the perfect solution for limit monitoring of tanks and running-dry protection of pumps in the food and process industries as well as for level detection on storage tanks. Note: Stock Number 7406442 -Cannot be used for oil and grease Caution: For health and safety reasons, do not use this sensor in the incorrect mediaFeatures and BenefitsUsed in liquid and viscous media and bulk materials Differentiation of media by parameterisation of the switching outputs Reliable suppression of deposits or foam Process connection is G A Gold-plated contacts Probe length is 11mm Has 2 switching outputs Maximum current of 50mAApplicationsFor the reliable level control in tanks and containers Hygienic design for the requirements of the food and beverage industryCertificationsCE certified UL approved IP 68/IP 69K rated IEC 61000-6-2 IEC 61000-6-4 IEC 61000-6-3 IEC 60068-2-27 DIN EN 60068-2-6 ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
