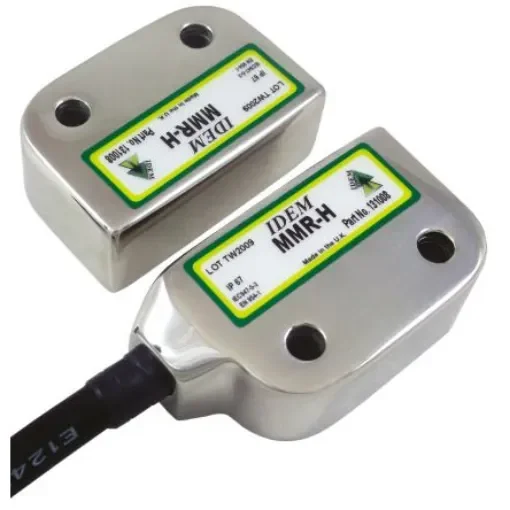

IDEM MMR-H Series Magnetic Non-Contact Safety Switch, 24V dc, 316 Stainless Steel Housing, 2NC, M12 - 131008

EN1088 (ISO 14119), EN 60947-5-1, EN 60204-1, ISO 13849-1, EN 62061, UL 508. CE, cULus, TUV. Actuator. The normally closed (NC) circuits are closed when the guard is closed and the actuator is present. IDEM HYGIEMAG MMR-H Non Contact Safety Switch. The HYGIEMAG MMR-H safety switch has been developed for non-contact guard door interlocking of hinged, sliding or removable guard doors. It is ideal for applications that require a wide tolerance to misalignment, a high switching capacity or high levels of hygiene. When used with dual channel safety relays, the MMR-H safety switch can be used to provide up to PLe/Category 4 to ISO13849-1 protection. Features and Benefits. Magnetic high-power switching Dual channel safety outputs Stainless steel 316 housing High temperature stability up to 105°C Can be mounted on steel structures High tolerance to guard misalignment IP69K protection Resistant to high temperature hosing and detergent wash down Conformance to EN60947-5-3 PDF-S Up to PLe ISO 13849-1 Compact ; robust fitting for small guard applications Suitable for food contact or slash zones - EHEDG guidelines Mirror Polished Finish to Ra4 Suitable for CIP and SIP cleaning 2NC / 1 NO 10 mm wide sensing Left or right cable exit options Switching capacity 0.5A 22 mm fixing centres Housing: 26 x 45 x 15 mm. Applications. The HYGIEMAG MMR-H non-contact safety switch is ideal for the food processing, pharmaceutical, packaging and chemical industries.
