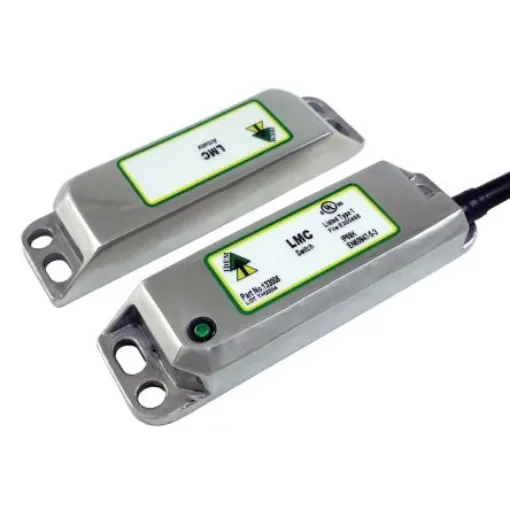

IDEM LMC Series Magnetic Non-Contact Safety Switch, 24V dc, 316 Stainless Steel Housing, 2NC, 5m Cable - 133006

Safety Contacts = 2NC
Housing Material = 316 Stainless Steel
Connection Type = 5m Cable
Actuator Type = Coded
Auxiliary Contacts = NO
Sensor Principle = Magnetic
Actuator Included = Yes
Series = LMC
IP Rating = IP67, IP69K
Supply Current = 200mA
Length = 88mm

EN1088 (ISO 14119), EN 60947-5-1, EN 60204-1, ISO 13849-1, EN 62061, UL 508. CE, cULus, TUV. Actuator. The normally closed (NC) circuits are closed when the guard is closed and the actuator is present. IDEM HYGIECODE LMC Non Contact Safety Switch. The HYGIECODE LMC safety switch has been developed for non-contact interlocking of hinged, sliding or removable guard doors. It is ideal for applications that require a wide tolerance to misalignment, high switching capacity or high level of hygiene. When used with a dual channel safety relay, this safety switch can be used to provide up to PLe/Category 4 to ISO13849-1. Features and Benefits. Coded magnetic actuation Stainless steel 316 housing mirror polished (Ra4) High tolerance to guard misalignment IP67 / IP69K protection Suitable for CIP cleaning - Food Splash Zones EHEDG Guidelines Resistant to high temperature hosing and detergent wash down Up to PLe ISO 13849-1 LED indication 14 mm wide sensing 78 mm fixing centres. Applications. The HYGIECODE LMC Non-contact Safety Switch is designed for use in general factory automation, packaging and some food processing industries.
