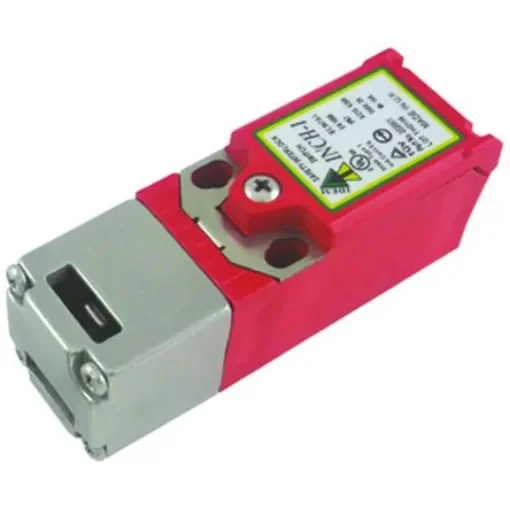

IDEM INCH-1 Safety Interlock Switch, 1NC/1NO, Keyed, Glass Fibre Polyester - 222003

Normal State Configuration = 1NC/1NO
Safety Contacts = NO/NC
Connection Type = M16
Housing Material = Glass Fibre Polyester
Range = Kobra
IP Rating = IP67
Number of Head Directions = 8
Series = INCH-1
Length = 79.5mm

EN1088, IEC 60947-5-1, EN60204-1, ISO 13849-1, EN62061, EN954-1, UL508. Not supplied with an actuator. Standard, flat, and flexible actuators are available separately. The plastic flexible actuator is perfect for tight radius guards. A stainless steel guide is also available separately to assist with guard alignment. IDEM Kobra INCH Safety Interlock Switches. The Kobra INCH series from IDEM are tongue operated safety interlock switches that fit to the leading edge of sliding, hinged or lift off machine guards. These safety switches have positively operated switching contacts and a strong tamper resistant key mechanism designed to provide robust position interlock detection for moving guards. Depending upon the risk assessment for the application, the Kobra INCH can be used independently to provide positively operated contacts to EN60947-5-1 or can be used in combination with any dual channel safety monitoring relays to provide up to Category 4 PLe ISO13849-1 or SIL3 EN62061. Two versions are available, the INCH-1 and INCH-3, which offer a choice of contact blocks and various actuators to aid installation and maintain durability. Actuator profile designed to match a cam mechanism Contact blocks can be replaced 8 actuator entry positions Rotatable stainless steel 316 head Plastic housing IP67 protection. INCH-1 Safety Switch. 2 pole contact blocks 2NC or 1NC / 1NO 1 conduit entry point M16 or M12 (Quick Connect) 8 way Miniature housing: 25mm wide, 55mm long, 17mm fixing. INCH-3 Safety Switch. 3 pole contact blocks 3 conduit entry points M16 or M12 (Quick Connect) 8 way Housing: 25mm wide, 79mm long, 22mm fixing
