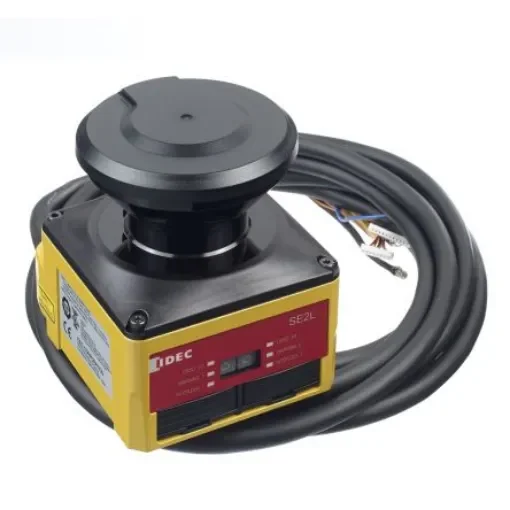

Idec SE2L Series SE2L-H05LP Laser Scanner
Compact Idec SE2L laser scanner provides advanced safety with customizable protection zones.
Manufacturer part number: SE2L-H05LP
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Range = SE2L-H05LP
Series = SE2L
Dimensions = 80 x 80 x 95 mm
Length = 80mm
IDEC SE2L safety laser scanner is the smallest in the world but out performing many competitions. Features include 270 degree sensing angle, 5m safety protection zone, 20m warning zone, and customizable protection patterns.Configurable using Master and Slave configuration. Up to four SE2L can be connected together which is ideal for detection of four sides on AGVs.With dual protection mode, SE2L can be programmed to safeguard two different zones for two robots at once. Reduce the number of laser scanners and light curtains by half Protection zone1 half.Protection zone (safety): 5m Warning zone (non-safety): 20m 270 degree sensing angle Master and slave function Maximum 32 patterns Customizable protection patterns EDM functions MicroSD slot
