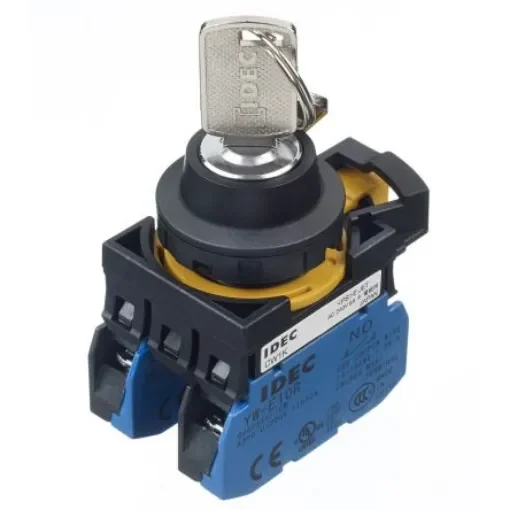

Idec IP66 Key Switch, 2NO 2-Way - CW1K-2AE20

Switch Operation = Latching
Contact Configuration = 2NO
IP Rating = IP66
Terminal Type = Screw
Key Index Angle = 90°
Contact Material = Silver

Idec CW Series Switches and Pilot Devices. The CW Series from Idec features stylish, compact and space saving switches and pilot devices. The inventive two-step locking lever integrated with a guard provides a higher level of safety and the low projection from the panel surface reduces the possibility of unexpected activation or operator damage. The shortest depth behind the panel in its class contributes to reducing machine and control panel size. Black and metallic bezels available Ø22.3mm mounting hole compliant with IEC 60947-5-1 Seven different keys can be chosen for key selector switches IP20 finger-safe screw terminals UL Type 4X rating 3.5mm operator travel for pushbuttons ensures comfortable and reliable operation Up to 6 contacts per switch are possible with use of dual contact blocks Contact blocks can be removed by locking lever 10A contact rating; up to three contact blocks for non-illuminated and two contact blocks for illuminated models can be connected
